1
Engine displacement
400
2
Year
1997
3
Trim
SPORTSMAN 400L - W97AC38C
4
Parts Catalog
REAR WHEEL DRIVE SPORTSMAN 400L W97AC38C (4939673967C007)
5
Parts Diagram
Parts Catalog
CLUTCH COVER SPORTSMAN 400L W97AC38C (4939673967C006)
by
PISTON CRANKSHAFT SPORTSMAN 400L W97AC38C (4939673967C014)
REAR WHEEL DRIVE SPORTSMAN 400L W97AC38C (4939673967C007)
1
2
3
3
4
4
5
5
6
7
8
8
9
9
10
11
11
12
12
13
13
14
14
15
16
16
17
18
19
20
21
22
23
23
24
24
25
25
26
27
28
29
30
31
32
1
WASHER
7555764
9999999
Not Available
2
JAM NUT
5020468
9999999
Not Available
3
BOLT
7512673
$5,76 Unit Price incl. VAT
4
HUB KIT
2200341
9999999
Not Available
5
PUSHNUT BOLT
7670081
9999999
Not Available
6
TIRE-25X11-10__MB0
5410948
9999999
Not Available
7
CONNECTOR LINK
3225024
9999999
Not Available
8
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
9
WASHER
7555745
9999999
Not Available
10
NUT
7542714
9999999
Not Available
11
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
12
CASTLE NUT
7543005
9999999
Not Available
13
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
14
COVER DUST HUB
5411164
5413427
$52,49 Unit Price incl. VAT
15
CHAIN; DRIVE; 84P
3224047
3221193-084
$272,99 Unit Price incl. VAT
16
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
17
GUARD SPKT 34T
5211617067
Not Available
18
SPACER-SPROCKET GUARD
5630586
9999999
Not Available
19
SPROCKET; 34 TOOTH
3222068
9999999
Not Available
20
BOLT
7515540
$9,44 Unit Price incl. VAT
21
SPROCKET HUB ASM.
1520170
9999999
Not Available
22
STUD 3/8-24 X 1.12
7515513
9999999
Not Available
23
O RING 1 5/16(10)
5410415
9999999
Not Available
24
AXLE SEAL; REAR
3610013
9999999
Not Available
25
BALL BEARING
3515501
$47,24 Unit Price incl. VAT
26
TUBE BEARING SPACER
5010204
9999999
Not Available
27
HOUSING AXLE
5130663
9999999
Not Available
28
SPACER BEARING
5010206
9999999
Not Available
29
SNAP RING
7710405
9999999
Not Available
30
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
31
AXLE REAR
5020789
9999999
Not Available
32
RIM REAR
1520183067
Not Available

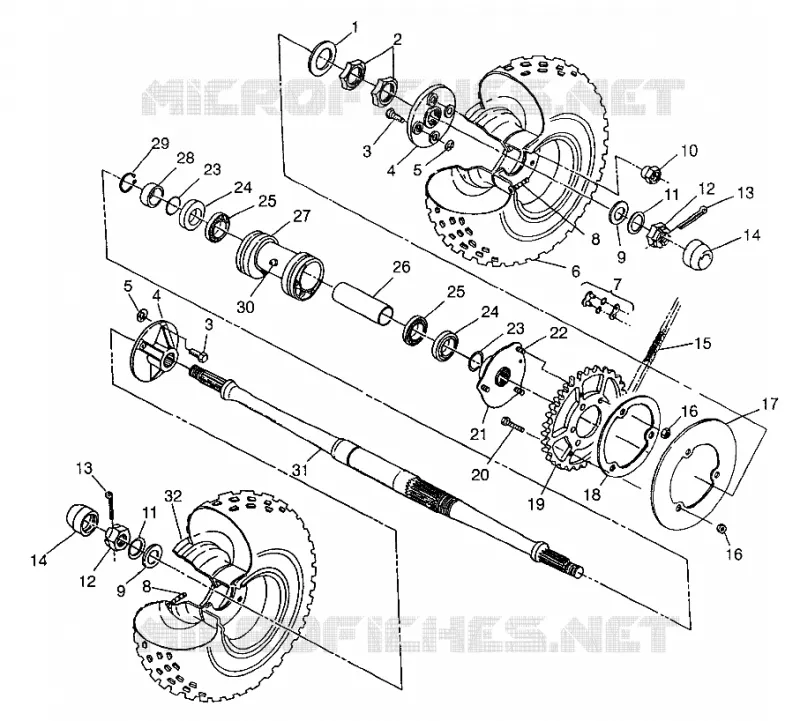

Find the detailed REAR WHEEL DRIVE SPORTSMAN 400L W97AC38C (4939673967C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
