1
Engine displacement
400
2
Year
1997
3
Trim
SPORTSMAN 400L - W97AC38C
4
Parts Catalog
FUEL TANK SPORTSMAN 400L W97AC38C (4939673967A013)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM SPORTSMAN 400L W97AC38C (4939673967A012)
by
OIL TANK SPORTSMAN 400L W97AC38C (4939673967A014)
FUEL TANK SPORTSMAN 400L W97AC38C (4939673967A013)
1
2
3
4
5
6
7
8
8
8
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
TANK FUEL
5430968
9999999
Not Available
2
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
3
CAP FUEL GAUGE LONG
2871442
$26,24 Unit Price incl. VAT
4
PAD SILENCER
5810423
9999999
Not Available
5
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
6
TANK VENT
5431053
9999999
Not Available
7
SCREW(10)
7512310
$4,19 Unit Price incl. VAT
8
BRKT RH.R.FUELCOVER BLK.
5222155067
Not Available
8
BRKT LH.R.FUELCOVER BLK.
5222154067
Not Available
9
SCREW
7512208
9999999
Not Available
10
BRKT R.TANK MT BLK.
5220916067
Not Available
11
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
12
FUEL LEVER EXTENSION
5431391
9999999
Not Available
13
COMPRESSION SPRING LEVER
7041209
9999999
Not Available
14
GROMMET
5432291
9999999
Not Available
15
FUEL LEVER
5431021
9999999
Not Available
16
SCREW
7511840
9999999
Not Available
17
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
18
WASHER
7555726
$3,14 Unit Price incl. VAT
19
SCREW
7515136
$2,09 Unit Price incl. VAT
20
FUEL VALVE ASSEMBLY
7051006
$104,99 Unit Price incl. VAT
21
FUEL VALVE GASKET
5810859
$12,59 Unit Price incl. VAT
22
PAD BULK FUEL
8360026
9999999
Not Available

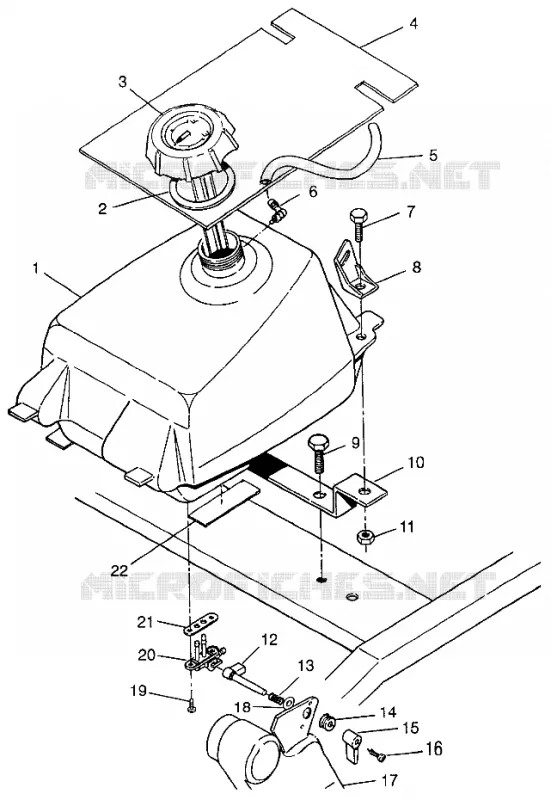

Find the detailed FUEL TANK SPORTSMAN 400L W97AC38C (4939673967A013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
