1
Engine displacement
400
2
Year
1997
3
Trim
SPORTSMAN 400L - W97AC38C
4
Parts Catalog
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 400L W97AC38C (4939673967C004)
5
Parts Diagram
Parts Catalog
WISHBONES Sportsman 400L W97AC38C (4939673967B013)
by
REAR BRAKE SPORTSMAN 400L W97AC38C (4939673967C005)
GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 400L W97AC38C (4939673967C004)
1
2
2
3
4
5
6
10
8
8
9
9
10
11
11
11
11
11
11
11
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
25
26
27
27
27
27
27
27
27
27
28
28
28
28
28
28
28
28
28
29
29
30
31
32
33
34
35
36
37
38
38
39
39
40
41
1
BOLT
7515345
9999999
Not Available
2
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
3
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
4
DECAL BRAKE SHIELD
7075339
Not Available
5
SHIELD R.CALIPER BLK.
5241018067
Not Available
6
CALIPER ASMR.BRAKE
1910224
9999999
Not Available
7
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
8
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
9
BOLT
7515522
$7,34 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
OUTPUT SHAFT BEARING ASSEMBLY
1590237
9999999
Not Available
11
SHAFT ASMO/PNDL BRG.
1590265
9999999
Not Available
12
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
13
BOLT
7515321
9999999
Not Available
14
CHAIN GUARD
5431717
9999999
Not Available
15
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
16
WASHER
7552606
9999999
Not Available
17
SCREW
7515346
$10,49 Unit Price incl. VAT
18
WASHER; FLAT
7555843
7558302
$3,14 Unit Price incl. VAT
19
BOLT
7512269
9999999
Not Available
20
WASHER
7552605
9999999
Not Available
21
SPACER CHAIN GUARD
5333244
9999999
Not Available
22
SPROCKET; 11 TOOTH
3221058
9999999
Not Available
23
RING RETAINING
7710433
9999999
Not Available
24
DISC ASMBRAKE
1910177
9999999
Not Available
25
BRAKE SEAL
3610026
9999999
Not Available
26
NUT FLANGE LOCK
7542449
$7,34 Unit Price incl. VAT
27
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
27
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
28
SHIM; .030
5211517
9999999
Not Available
28
SHIM
5211065
9999999
Not Available
28
SPACER; .020
5210764
9999999
Not Available
29
SPEED NUT
7670060
9999999
Not Available
30
BOLT CARRIAGE
7515484
9999999
Not Available
31
SNAP RING
7710434
$7,34 Unit Price incl. VAT
32
SPROCKET; 13 TOOTH
3221041
$83,99 Unit Price incl. VAT
33
NUT LOCK
7542403
9999999
Not Available
34
BOLT
7515472
$4,19 Unit Price incl. VAT
35
NUT
7542404
$3,14 Unit Price incl. VAT
36
BOLT
7515485
9999999
Not Available
37
SUBSTITUTED BY 7555806
7555784
$1,56 Unit Price incl. VAT
38
BRAKE SEAL
3610062
9999999
Not Available
39
FLANGETTE O/P SHAFT BRNG.
5242072
9999999
Not Available
40
NEEDLE BEARING
3554202
9999999
Not Available
41
HSG BRNG O/P SHAFT
5131643
9999999
Not Available

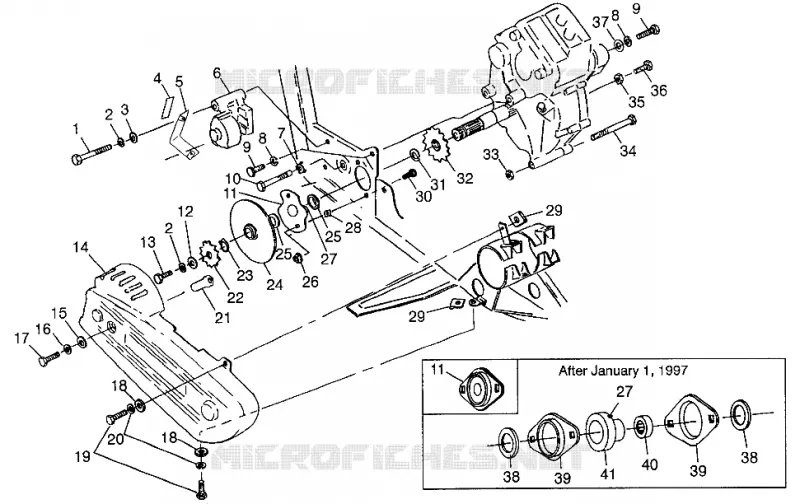

Find the detailed GEARCASE/BRAKE AND CHAIN COVER MOUNTING SPORTSMAN 400L W97AC38C (4939673967C004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
