1
Engine displacement
autre
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
TUNNEL
5
Parts Diagram
Parts Catalog
by
NOSEPAN
TUNNEL
1
FOOTREST RH
1012281
Not Available
2
MOUNTRHCONSOLE
5240864067
Not Available
3
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
4
TUNNEL SKS STORM (SKS RMK)
1012288
Not Available
4
TUNNEL (AGR) BLK. Substituted by 1012554 (Storm)
1012306
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
STRIP-WEAR
5510130
9999999
Not Available
7
RIVET SEMI-TUBE (10)
7661840
9999999
Not Available
8
FLAP SNOW (XTRA-12)
5432033
Not Available
8
FLAP;SNOW;(XTRA-10)
5432149
9999999
Not Available
9
RIVET
7621418
$2,09 Unit Price incl. VAT
10
PANEL TUNNELBACK
5241053067
Not Available
10
PANEL R.CLOSEOFF
5240968067
Not Available
11
SCREW
7512091
9999999
Not Available
12
SKIRT SNOW LH
5432049070
Not Available
12
SKIRT SNOW RH
5432050070
Not Available
13
RIVET (50)
7621342
9999999
Not Available
14
BUMPER REAR BLACK
2670169
9999999
Not Available
15
CAP BUMPER
5431995070
Not Available
16
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
17
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
18
BOLT
7512240
9999999
Not Available
19
RIVET SEMI-TUBE (50)
7661841
9999999
Not Available
20
PAD LH R.SUSP.
5241268067
Not Available
20
BRKT RH R.SUSP
1012410067
Not Available
20
PAD RH R.SUSP.
5241269067
Not Available
20
BRKT LH R.SUSP
1012409067
Not Available
21
PAD RH FR.SUSP.MTG.
5241304067
Not Available
21
PAD LH FR.SUSP.MTG.
5241303067
Not Available
22
SNAP-MALE
7080227
9999999
Not Available
23
RIVET(10)
7621222
9999999
Not Available
24
MOUNT LH CONSOLE
5240863067
Not Available
25
RIVET(10)
7661850
9999999
Not Available
26
FOOTREST LH
1012280
Not Available
27
PLATE CLUTCH GUARD MT.
1012441
Not Available
28
BRACE;TUNNEL REINF.
5240992
9999999
Not Available
29
RIVET INTERLOCK(50)
7661639
7661130
$2,09 Unit Price incl. VAT
30
GUARD ADAPTER GUIDE
5222857
9999999
Not Available
31
PLUG HOLE
7080512
9999999
Not Available
32
PLUG HOLE
7080398
$10,49 Unit Price incl. VAT
33
BULKHEAD ASM.
1012259067
Not Available
34
ROPE GUIDE BRACKET; MEDIUM GLOSS BLACK
5222687067
Not Available
35
RECOIL GUIDE
5431385
$19,94 Unit Price incl. VAT

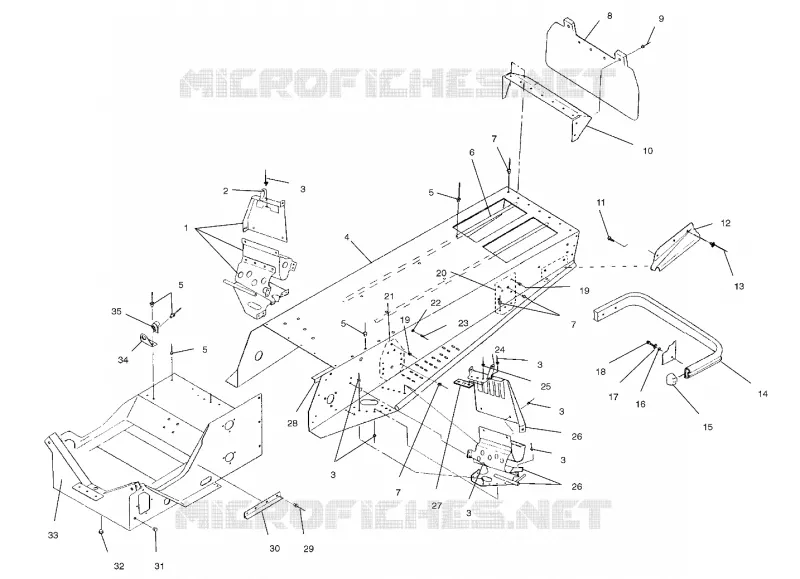

Find the detailed TUNNEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
