1
Engine displacement
autre
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
STEERING ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B007)
5
Parts Diagram
Parts Catalog
STEERING STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM S (4931593159B006)
by
BRAKE STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM SKS (4931593159B008)
STEERING ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B007)
1
CLIP
7080278
9999999
Not Available
2
POST STRG.(AGR.) BLK.
1823172067
Not Available
3
BOLT ;
7512239
7517377
$9,44 Unit Price incl. VAT
4
HOOP STEERING Substituted by 1012856-067
1012282067
Not Available
5
RIVET
7661637
$2,09 Unit Price incl. VAT
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
BOLT-CARRIAGE
7512275
9999999
Not Available
8
LIMITERTORQUE
1012277067
Not Available
9
NUT JAM
7542432
$7,34 Unit Price incl. VAT
10
MOUNT;TORQUESTOP;RUBBER
3110034
9999999
Not Available
11
ROD TIE BLK.
5020715067
Not Available
11
ROD TIE BLACK
5332713067
Not Available
12
RIVET(50)
7621340
9999999
Not Available
13
NUT LH (10)
7542424
$1,56 Unit Price incl. VAT
13
NUT HEX RH(10)
7542401
$4,19 Unit Price incl. VAT
14
ROD END; RH
7060152
7060167
$99,74 Unit Price incl. VAT
14
ROD END RH
7060125
7060165
$99,74 Unit Price incl. VAT
14
ROD END; LH
7060151
7060166
$99,74 Unit Price incl. VAT
14
ROD END;LH
7060124
7060164
$99,74 Unit Price incl. VAT
15
PLATE BOOTSEAL BLK.
5210904067
Not Available
15
PLATE LH BOOTSEAL BLK.
5210959067
Not Available
16
BOOT-TIE ROD
5410328
9999999
Not Available
17
ROSEBUD CLIP
4020139
$9,44 Unit Price incl. VAT
18
NUT LOCK
7542403
9999999
Not Available
19
BLOCK STEERING
5630375
Not Available
20
BUSHING
3563907
$7,34 Unit Price incl. VAT
21
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
22
LUBRICATION FITTING
7080424
$9,44 Unit Price incl. VAT
23
BOLT
7515528
$15,74 Unit Price incl. VAT
24
ARM ASM CTR.STRG. (Incl. 33)
1822252
Not Available
25
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
26
BUSHING
5010340
9999999
Not Available
27
WASHER WAVE
7555735
$7,34 Unit Price incl. VAT
28
BOLT
7512404
$7,34 Unit Price incl. VAT
29
ROD END; RIGHT
7060165
$99,74 Unit Price incl. VAT
29
END ROD; LEFT
7060164
$99,74 Unit Price incl. VAT
30
ROD-DRAG LINK
5332712
9999999
Not Available
31
BOLT
7512682
9999999
Not Available
32
WASHER
7555721
$2,09 Unit Price incl. VAT
33
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
34
NUT
7542712
$17,84 Unit Price incl. VAT
35
COTTER PIN
7661203
$2,09 Unit Price incl. VAT

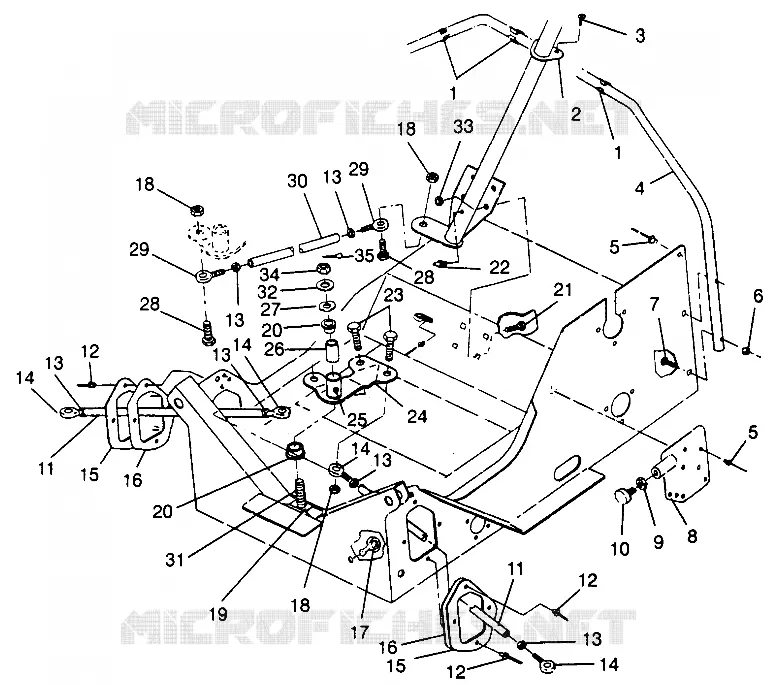

Find the detailed STEERING ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
