Parts Catalog
ENGINE MOUNTING STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159C011)
5
Parts Diagram
Parts Catalog
DRIVE TRAIN ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, (4931593159C010)
by
WATER PUMP STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STOR (4931593159D003)
ENGINE MOUNTING STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159C011)
1
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
2
FUEL LINE; 600 CM
8450040600
Not Available
3
FUEL FILTER
2530008
9999999
Not Available
4
FUEL LINE 5 FT. Substituted by 8450044-153
8450044156
Not Available
5
HOSE CLAMP
7080534
$3,14 Unit Price incl. VAT
6
VALVE FUEL SHUT-OFF
7051010
9999999
Not Available
7
WELL NUT
7541923
$10,49 Unit Price incl. VAT
8
BRKT BOOST-TUBE BLK.
5240343067
Not Available
9
ASM. BOLT&WASHER
3083729
9999999
Not Available
10
DECAL FUEL SHUT-OFF
7073869
Not Available
11
TUBE BOOST
5431678
9999999
Not Available
12
CLAMP
7080533
9999999
Not Available
13
FITTING TEE
7052089
9999999
Not Available
14
SCREW(10)
7512222
9999999
Not Available
15
WASHER
7552604
$3,14 Unit Price incl. VAT
16
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
17
SCREW
7512279
$1,56 Unit Price incl. VAT
18
STRAP BLK
7080272
9999999
Not Available
19
BOLT
7512565
9999999
Not Available
20
WASHER LOCK
7575202
$9,44 Unit Price incl. VAT
21
WASHER CLUTCH RETAINER
5010278
5010287
$18,89 Unit Price incl. VAT
22
CABLE THROTTLE W/OIL
7080623
9999999
Not Available
23
SPARK PLUG
3070165
$7,34 Unit Price incl. VAT
24
ENG.(S.B.)EC80PL-04 [No Longer Available] (RMK)
3085229
Not Available
24
ENG.(S.B.)EC80PL-05 [No Longer Available] (Storm SKS)
3085230
Not Available
25
HANDLE RECOIL
5431499
9999999
Not Available
26
SCREW
7512530
$10,49 Unit Price incl. VAT
27
WASHER
7555740
$3,14 Unit Price incl. VAT
28
MOUNT ENGINE
5410390
9999999
Not Available
29
SPACER (MTR.MT.)
5332778
9999999
Not Available
30
PLATE RH ENGINE
5240731
Not Available
31
SPRING LOCK WASHER
7553101
$7,34 Unit Price incl. VAT
32
BOLT
7512575
9999999
Not Available
33
FLEXLOC NUT
7542411
$6,29 Unit Price incl. VAT
34
WASHER FLAT(10)
7555915
$6,29 Unit Price incl. VAT
35
MOUNT
3110022
9999999
Not Available
36
WASHER
7555720
7555806
$1,56 Unit Price incl. VAT
37
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
38
PLATE LH ENGINE
5240730
Not Available
39
LIMITERTORQUE
1012277067
Not Available
40
RIVET
7661637
$2,09 Unit Price incl. VAT
41
NUT JAM
7542432
$7,34 Unit Price incl. VAT
42
MT;RUBBER;TORQUE STOP
3110041
9999999
Not Available

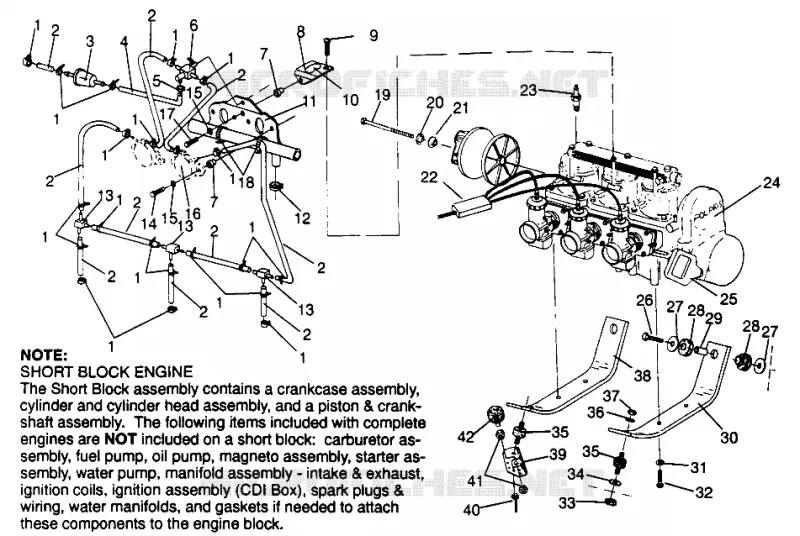

Find the detailed ENGINE MOUNTING STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159C011) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
