1
Engine displacement
autre
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
FOX SHOCK
5
Parts Diagram
Parts Catalog
REAR TORQUE ARM STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO (4931593159C004)
by
FOX SHOCK
FOX SHOCK
1
BUSHING SHOCK
5431727
9999999
Not Available
2
AIR VALVE ASSEMBLY
1500014
9999999
Not Available
3
SCREW
1500019
9999999
Not Available
4
CAM SHOCK
5630492
Not Available
5
RETAINER CAM
5630491
Not Available
6
BUSHING SHOCK .220
5431540
9999999
Not Available
7
BUSHING (1.34 IN.)
5020612
9999999
Not Available
8
O-RING .103W-1.549ID
1500108
$15,74 Unit Price incl. VAT
9
PISTON
1500011
9999999
Not Available
10
FLOATING PISTON RING
1500006
$34,64 Unit Price incl. VAT
11
O-RING ENDCAP
1500003
9999999
Not Available
12
PLATE BACKUP
1500015
9999999
Not Available
13
PISTON
1500010
Not Available
14
O-RING INNER
1500021
9999999
Not Available
15
WIPER INNER
1500025
1500266
$52,49 Unit Price incl. VAT
16
WIPER CLR OUTER
1500024
5433298
$23,09 Unit Price incl. VAT
17
BUSHING 1.16 IN
5020613
9999999
Not Available
18
EYELET
1500013
9999999
Not Available
19
BUMPER
1500066
9999999
Not Available
20
BEARING
1500009
9999999
Not Available
21
O-RING; .103 X 1.299
1500020
9999999
Not Available
22
PLATE TOP OUT
1500017
9999999
Not Available
23
DAMPER; PISTON RING
1500002
9999999
Not Available
24
NUT LOCK
1500016
$23,09 Unit Price incl. VAT
25
O-RING DRUM OUTER
1500022
9999999
Not Available
26
SCREW
1500018
9999999
Not Available
27
O-RING OUTER
1500023
9999999
Not Available
28
SHOCK GAS IFS IFP CAM WHT.
7041474
Not Available
28
CAP BODY
1500073
Not Available

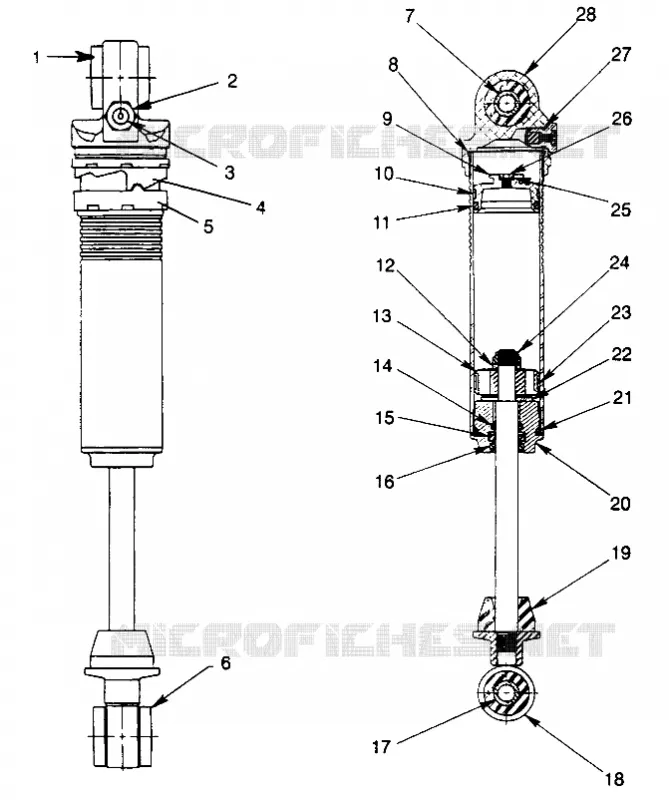

Find the detailed FOX SHOCK POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
