1
Engine displacement
autre
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
CONSOLE WIRE HARNESS
5
Parts Diagram
Parts Catalog
NOSEPAN FOIL
by
HOOD
CONSOLE WIRE HARNESS
1
SWITCH TETHER
4110156
9999999
Not Available
2
CAP W/KEY
5410611
9990000
Not Available
3
NUT IGN.SWITCH(10)
7543101
9999999
Not Available
4
NUT-CHOKE SLIDE
7080229
$36,74 Unit Price incl. VAT
5
KIT IGN. SWITCH
2200357
9999999
Not Available
6
WASHER-LOCK
7571610
$7,34 Unit Price incl. VAT
7
CHOKE CONTROL KIT
2200188
$52,49 Unit Price incl. VAT
8
CHOKE CABLE
7080283
9999999
Not Available
9
CONSOLE;(EURO AGR)
5432293
9999999
Not Available
9
CONSOLE BASIC (US)
5431781
Not Available
10
SCREW
7512069
9999999
Not Available
11
WASHER
7555792
$9,44 Unit Price incl. VAT
12
SCREW
7512297
$10,49 Unit Price incl. VAT
13
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
14
SCREW
7512252
9999999
Not Available
15
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
16
SPACERREGULATOR
5211573
9999999
Not Available
17
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
18
REGULATOR (14.3VAC) LR-7
4060123
2203873
$188,99 Unit Price incl. VAT
19
SCREW
7511848
$7,34 Unit Price incl. VAT
20
HARNESSHANDLEBAR
2460506
9999999
Not Available
21
HOUSING 1 CIRCUIT
4020153
9999999
Not Available
22
HOUSING
4020057
9999999
Not Available
23
HOUSING SOCKET
4020133
9999999
Not Available
24
HARNESS MAIN
2460517
Not Available

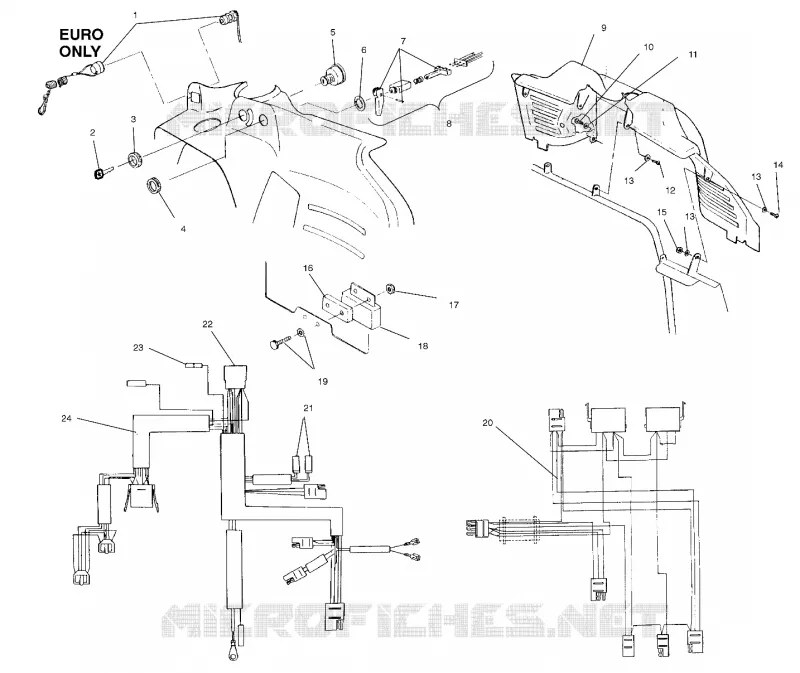

Find the detailed CONSOLE WIRE HARNESS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
