Parts Catalog
HOOD
5
Parts Diagram
Parts Catalog
CONSOLE WIRE HARNESS
by
INSTRUMENTS
HOOD
1
WNDSHLD LOW SMOKE(AGR) (Storm RMK)
5432266
Not Available
1
WNDSHLD CLR STD AGR. (SKS)
5432267
Not Available
2
HOUSINGINST.
5431780070
Not Available
3
WINDSHIELD RETAINER
5410970
$2,09 Unit Price incl. VAT
4
RETAINER W/S BLK.MET. Substituted by 5432573-177
5431785177
Not Available
5
PLASTI-LOCK RIVET
7621509
$2,09 Unit Price incl. VAT
6
FOAM-HEADLIGHT
5811094
Not Available
7
NUT H/L.PIVOT
5431901
Not Available
8
NUT-WELL
7541920
9999999
Not Available
9
H/L ASM.
2431009
9999999
Not Available
9
HEADLIGHT BULB
2870448
$36,74 Unit Price incl. VAT
10
NUT
7542124
7542122
$2,09 Unit Price incl. VAT
11
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
12
SCREW(10)
7512222
9999999
Not Available
13
WASHER SPECIAL
5020811
Not Available
14
SPRING ADJ.H/L
7041397
Not Available
15
SPACER TUBE
5333296
Not Available
16
RIVET(50)
7661643
7661130
$2,09 Unit Price incl. VAT
17
SCREW ADJ. H/L.
4032072
9999999
Not Available
18
BRKT H/L ADJUST
5240757067
Not Available
19
WASHER
7555904
$1,56 Unit Price incl. VAT
20
SCREW
7512026
$2,09 Unit Price incl. VAT
21
WASHER 13/64X1/2X18GA FL-Y (10
7558212
$1,56 Unit Price incl. VAT
22
PLENUM;AIR INTAKE;HD.
5431991
5432665
Not Available
23
HOOD AGR STORM FOAM FOIL
2631689177
Not Available
24
HOOD LATCH CUP
5430733
9999999
Not Available
25
RIVET
7621334
$2,09 Unit Price incl. VAT
26
CLAMP RETAINER
7080372
$7,34 Unit Price incl. VAT
27
CABLE-HOOD RETAINER
7080569
9999999
Not Available
28
SCREEN LH SIDEUPP.LOUVER Substituted by 5241146-067
5241145067
Not Available
28
SCREEN RH SIDEUPP.LOUVER
5241146067
Not Available
29
RETAINER-TAB
5411075
9999999
Not Available
30
SCREEN RH CTR UPP.LOUVER
5241142067
Not Available
30
SCREENLHCTRUPP.LOUVER
5241141067
Not Available
31
SCREEN LH CTR MID.LOUVER Substituted by 5241140-067
5241139067
Not Available
31
SCREEN CTR MID.LOUVER
5241140067
Not Available
32
SPEEDCLIP U TYPE
7670082
9999999
Not Available
33
SCREEN RH SIDELOW.LOUVER
5241144067
Not Available
33
SCREEN LH SIDELOW.LOUVER Substituted by 5241144-067
5241143067
Not Available
34
SCREEN LOUVER CTR.LOW.
5241138067
Not Available
35
PLATE HINGE BLK.
5211536067
Not Available
36
HINGE UPPER RH
1012247067
Not Available
36
HINGE UPPER LH
1012246067
Not Available
37
BUSHING HINGE
5431884
9999999
Not Available
38
HITCH PIN
7661644
$4,19 Unit Price incl. VAT
39
MOUNT;CABLE;TIE
7080589
9999999
Not Available

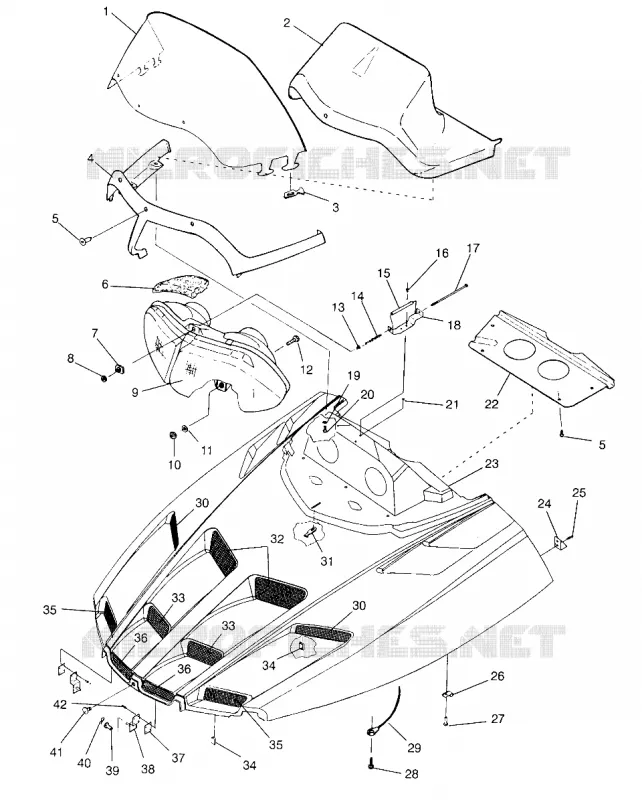

Find the detailed HOOD POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
