1
Engine displacement
autre
2
Year
1996
3
Trim
STORM - 0965782
4
Parts Catalog
BRAKE STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM SKS (4931593159B008)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EU (4931593159B007)
by
CHAINCASE ASSEMBLY STORM 0965782, STORM SKS 0965582, EURO STORM E965782, E (4931593159B009)
BRAKE STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM SKS (4931593159B008)
1
BOLT
7515521
$7,34 Unit Price incl. VAT
2
WASHER SPRINGLOCK
7553001
7552603
$1,56 Unit Price incl. VAT
3
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
4
KIT CALIPER BRKT.
1930733
9999999
Not Available
5
KIT PISTON SEAL
1930734
9999999
Not Available
6
SEAL
2200466
$62,99 Unit Price incl. VAT
7
KIT CLIP SPRING
2200467
9999999
Not Available
8
SWITCH STOPLIGHT
4110135
9999999
Not Available
9
KIT BRAKEPAD HD.TYP.61
2200594
9999999
Not Available
9
KIT BRAKE PAD
2200604
9999999
Not Available
10
CALIPER ASMH/DBRAKE(AGR)
1930763
9999999
Not Available
10
CALIPER ASM BRAKE LIQ AGR (Incl. 4-13) (Storm SKS)
1930764
Not Available
11
CALIPER WATER-COOLED
1930736
9999999
Not Available
12
LINE BRAKE
1930749
Not Available
13
KIT INLET
1930735
9999999
Not Available
14
GASKET BRK.COOLER
2201024
9999999
Not Available
14
COOLER WATER BRAKE
1930728
9999999
Not Available
15
PK/4 SCREW SET
1930729
9999999
Not Available

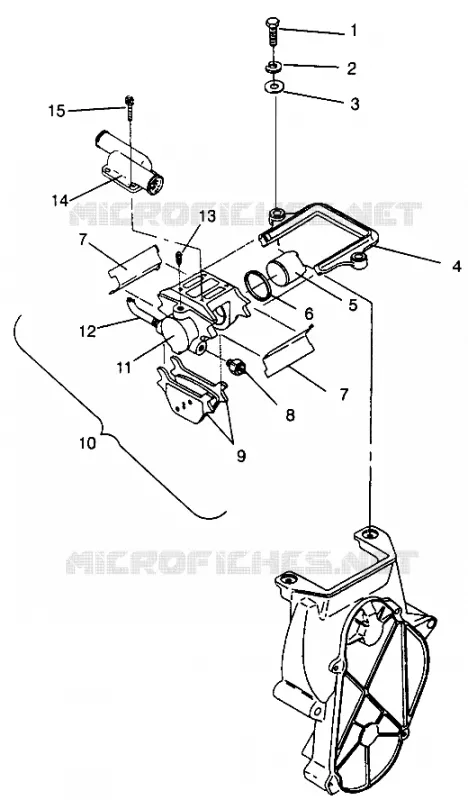

Find the detailed BRAKE STORM 0965782, STORM SKS 0965582, EURO STORM E965782, EURO STORM SKS (4931593159B008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
