1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog

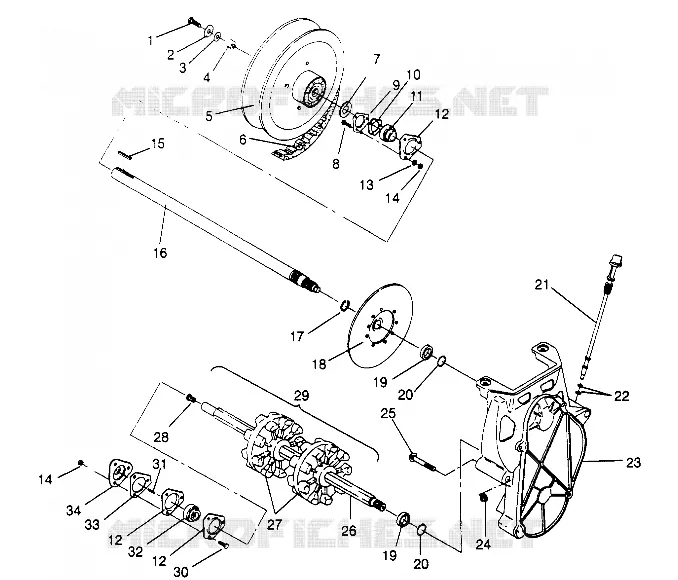

DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012)
5
Parts Diagram
Parts Catalog
IGNITION WIRE HARNESS 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905B007)
by
SUSPENSION ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974 (4929052905B013)
DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012)
1
BOLT
7515301
9999999
Not Available
2
WASHER FLAT
7555701
$7,34 Unit Price incl. VAT
3
WASHER FLAT(10)
7555734
$1,56 Unit Price incl. VAT
4
SPACER
5020291
9999999
Not Available
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SNOWMOBILE DRIVE BELT
3211042
$141,21 Unit Price incl. VAT
7
BUSHING
7556509
$3,14 Unit Price incl. VAT
8
BOLT
7512394
7512377
$9,44 Unit Price incl. VAT
9
FLANGETTE
5240252
9999999
Not Available
10
JACKSHAFT GASKET; BLACK
5811095
9999999
Not Available
11
JACKSHAFT BEARING
3514519
9999999
Not Available
12
FLANGETTE
5222751
9999999
Not Available
13
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
14
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
15
KEY-SQUARE
7721204
9999999
Not Available
16
JACKSHAFT ASM BLK.
1332141067
Not Available
17
RING RETAINING
7710422
$7,34 Unit Price incl. VAT
18
DISC ASM BRAKE
1910086
9999999
Not Available
19
SLEEVE SEAL
5020588
$40,94 Unit Price incl. VAT
20
O-RING
5410613
$3,66 Unit Price incl. VAT
21
DIPSTICK
5431419
1332143
$89,24 Unit Price incl. VAT
22
O-RING
5410675
$3,14 Unit Price incl. VAT
23
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
24
NUT FLANGE
7542423
$7,34 Unit Price incl. VAT
25
BOLT CARRIAGE
7515428
9999999
Not Available
26
DRIVE SHAFT
6230067
9999999
Not Available
27
SPROCKET 8T (XLT SKS PT)
5431770
Not Available
27
SPROCKET 9T
5430571
9999999
Not Available
28
SPEEDO METAL BUSHING
3280019
$20,99 Unit Price incl. VAT
29
DRIVESHAFT ASM.
1590230
9999999
Not Available
29
DRIVESHAFT ASM 8T Substituted by 1590248 (Incl. 26-28) (PT)
1590244
Not Available
30
BOLT CARRIAGE
7512331
$7,34 Unit Price incl. VAT
31
SPEEDOMETER SQUARE KEY
3280017
9999999
Not Available
32
BEARING DRIVESHAFT
3514518
9999999
Not Available
33
GASKET DRIVE ADAPTOR
5830012
$4,19 Unit Price incl. VAT
34
DRIVE ADAPTER WITH ZERK
3280197
9999999
Not Available
34
ADAPTER DRIVE W/ZERK
3280116
3280540
$188,99 Unit Price incl. VAT

Find the detailed DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
