DRIVEN CLUTCH ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952 (4929052905C004)

1

SCREW

7512048

9999999

Not Available

2

PLATE

5210749

9999999

Not Available

3

RETAINING RING

7714804

9999999

Not Available

4

WASHER 1.505 X 2.00 X 0.30

7556804

$1,56 Unit Price incl. VAT

5

RAMP DRIVEN 36 DEGREE

5130895

9999999

Not Available

6

KEY SQUARE

7721103

9999999

Not Available

7

CLUTCH SPRING; RED

7041198

$104,99 Unit Price incl. VAT

8

DRIVEN BUSHING; LARGE

3569803

9999999

Not Available

9

WASHER

7555899

9999999

Not Available

10

PIN-ADJUSTABLE DRIVEN

5020653

$52,49 Unit Price incl. VAT

11

CAM DRIVEN ADJUSTABLE

5222878

9999999

Not Available

12

SCREW

7515133

$7,34 Unit Price incl. VAT

13

CAP DRIVEN (600 600 SE)

5230101

Not Available

14

RAMP BUTTON

5430466

$12,59 Unit Price incl. VAT

15

CLUTCH 36DEG.ADJ DRIVEN

1322155

9999999

Not Available

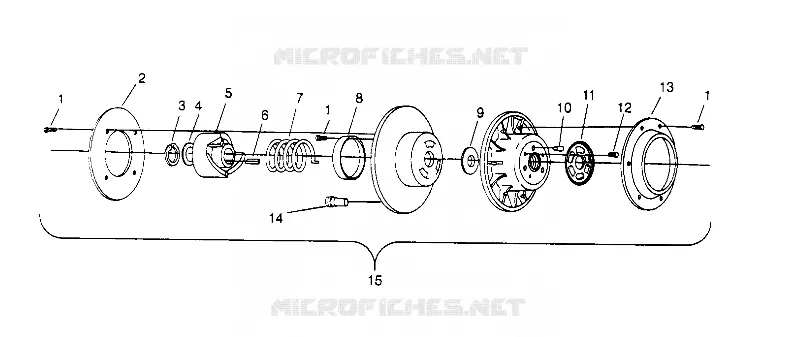

Find the detailed DRIVEN CLUTCH ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952 (4929052905C004) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
