1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog
OIL TANK AIR BOX 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007)
5
Parts Diagram
Parts Catalog
EXHAUST SYSTEM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND (4929052905C006)
by
WATER PUMP 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND EUR (4929052905C012)

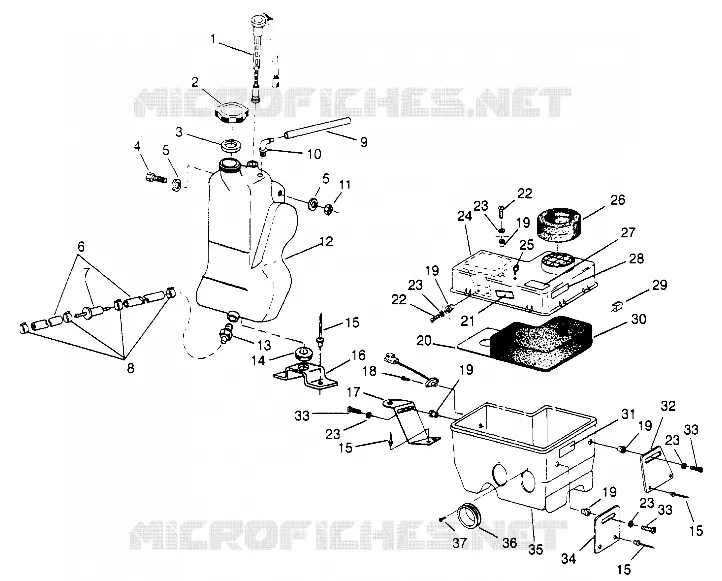

OIL TANK AIR BOX 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007)
1
OIL LEVEL SENSOR WITH CONNECTING ROD
4040040
$141,74 Unit Price incl. VAT
2
OIL TANK CAP
5430779
$31,49 Unit Price incl. VAT
3
OIL CAP GASKET
5810141
$4,19 Unit Price incl. VAT
4
BOLT
7512240
9999999
Not Available
5
WASHER WROUGHT
7558302
$3,14 Unit Price incl. VAT
6
FUEL LINE; 1/4 ID
84500031525
Not Available
7
SMALL IN-LINE FILTER
2530009
$12,59 Unit Price incl. VAT
8
HOSE CLAMP
7080307
$1,56 Unit Price incl. VAT
9
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
10
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
TANK OIL
5431437
9999999
Not Available
13
FITTING OUTLET
7052042
$13,64 Unit Price incl. VAT
14
GROMMET RUBBER
5410021
9999999
Not Available
15
RIVET
7661637
$2,09 Unit Price incl. VAT
16
BRACKET
5223985
Not Available
17
BRKT AIR SILENCER
5222617067
Not Available
18
BOLT
7511871
9999999
Not Available
19
WELL NUT
7541923
$10,49 Unit Price incl. VAT
20
AIR SILENCER PLATE
5850075
9999999
Not Available
21
DECAL COOLING SYS. [No Longer Available]
7073721
Not Available
22
BOLT
7512261
9999999
Not Available
23
WASHER
7552604
$3,14 Unit Price incl. VAT
24
DECAL OXY.FUEL(500 EFI)
7074912
Not Available
25
SILENCER AIR UP.DRILLED (Drilled)
5431566
Not Available
26
CLAMP WIRE ROUTING
7080409
9999999
Not Available
27
AIR DUCT ASSEMBLY
2620057
$73,49 Unit Price incl. VAT
28
DECAL CAUTION(AIR BOX) [No Longer Available]
7072891
Not Available
29
Decal Adjustable Driven Clutch
7073820
Not Available
30
AIR BOX CLIP
7670055
$11,54 Unit Price incl. VAT
31
BAFFLE ASM (EFI 94)
1253117
Not Available
32
DECAL; GREASING
7073426
9999999
Not Available
33
BRACKET; SILENCER
5211274
$18,89 Unit Price incl. VAT
34
SCREW
7512279
$1,56 Unit Price incl. VAT
35
BRKTFRT.SILENCER
5211296067
Not Available
36
SILENCER INTAKE DRILLED Substituted by 5432310
5431290
Not Available
37
BOOT RELIEVED
5410585
Not Available

Find the detailed OIL TANK AIR BOX 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
