1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog

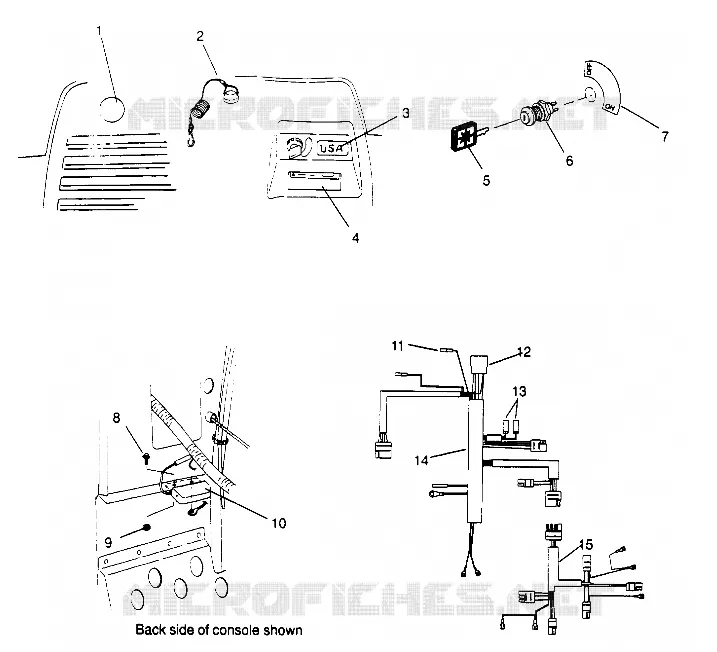

IGNITION WIRE HARNESS 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905B007)
5
Parts Diagram
Parts Catalog
STEERING ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, (4929052905B006)
by
DRIVE TRAIN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095297 (4929052905B012)
IGNITION WIRE HARNESS 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905B007)
1
LOGO #40 YEARS#
7074695
Not Available
2
SWITCH TETHER
4110156
9999999
Not Available
3
LABEL U.S.A.
7073024
9999999
Not Available
4
DECAL#NO PASS#GR#WARN.
7073406
Not Available
4
DECAL PASS#GR.WARN. [No Longer Available]
7073405
Not Available
5
CAP W/KEY
5410611
9990000
Not Available
6
KIT IGN. SWITCH
2200357
9999999
Not Available
7
DECAL IGNITION(10)
7074202
9999999
Not Available
8
SCREW
7512052
9999999
Not Available
9
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
10
REGULATOR 14 VAC.LR-9
4060122
2203873
$188,99 Unit Price incl. VAT
11
HOUSING SOCKET
4020133
9999999
Not Available
12
HOUSING
4020057
9999999
Not Available
13
HOUSING 1 CIRCUIT
4020153
9999999
Not Available
14
HARNESS MAINWIRE EURO.
2460461
9999999
Not Available
14
HARNESS MAIN WIRE
2460417
Not Available
15
HARNESSHANDLEBAR
2460506
9999999
Not Available

Find the detailed IGNITION WIRE HARNESS 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905B007) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
