1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog

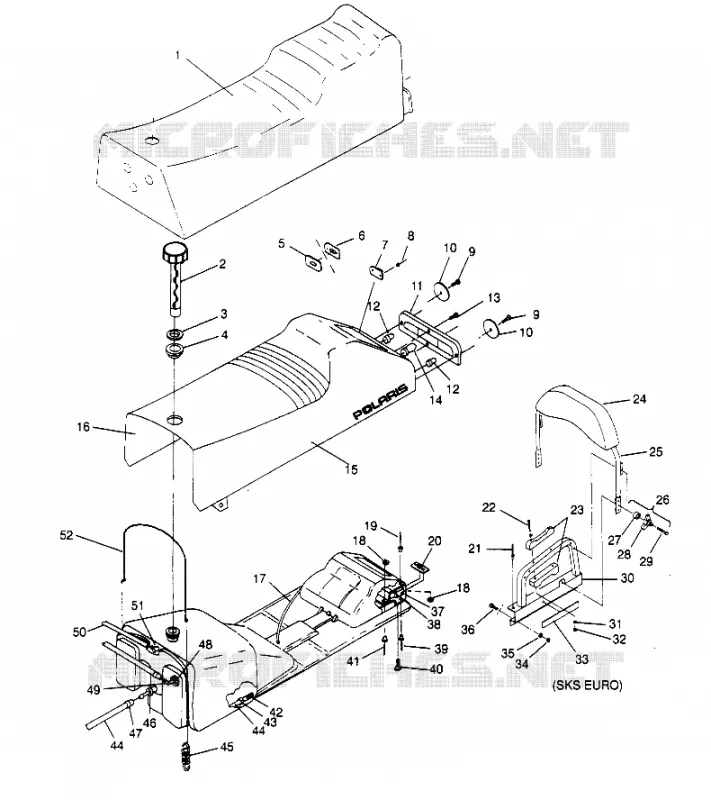

SEAT GAS TANK ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905A008)
5
Parts Diagram
Parts Catalog
TUNNEL ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AN (4929052905A006)
by
NOSEPAN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND (4929052905A010)
SEAT GAS TANK ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905A008)
1
COVER SEAT 2-UP
2681752
Not Available
1
SEAT EURO 500 EFI (EURO)
2681820
Not Available
2
GAS CAP W/ GAUGE
2511248
$83,99 Unit Price incl. VAT
3
GAS CAP GASKET
5810513
$15,74 Unit Price incl. VAT
4
GROMMET; FUEL TANK
5410815
9999999
Not Available
5
GROMMET RELATCH 1 BOTT.
7080550
9999999
Not Available
6
GROMMET RELATCH 1 TOP
7080549
9999999
Not Available
7
TWISTLOCK RELATCH 1 IN W/HOLE
7080548
9999999
Not Available
8
RIVET(10)
7621339
9999999
Not Available
9
SCREW
7511856
9999999
Not Available
10
REFLECTOR
5430781
Not Available
11
LENS TAILLIGHT
5430423
9999999
Not Available
12
TAILLIGHT BULB
4030024
9999999
Not Available
13
SCREW
7511840
9999999
Not Available
14
BULB
4030045
9999999
Not Available
15
COVER SEAT (EFI)
2681793
Not Available
15
COVER SEAT (500EFI) (SKS)
2681795
Not Available
16
SEAT ASM LONG
2681792
Not Available
16
CUSHION SEAT STD.
2681794
9999999
Not Available
17
HARNESS TAILLIGHT
2460398
Not Available
18
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
19
RIVET
7621467
$2,09 Unit Price incl. VAT
20
WELD NUT RETAINERS
7542147
9999999
Not Available
21
RIVET INTERLOCK
7661638
$2,09 Unit Price incl. VAT
22
SCREW
7510504
$10,49 Unit Price incl. VAT
23
GRIP; HAND
5431015
9999999
Not Available
24
COVER BACKREST
2681265
9999999
Not Available
25
BACKREST ASM.
2681356
9999999
Not Available
26
KNOB ASMBACKREST
2670130
9999999
Not Available
27
SPACER
5431285
9999999
Not Available
28
KNOB; BACKREST
5630386067
Not Available
29
SCREW
7515352
9999999
Not Available
30
BAR GRAB LH BLK.
1011729067
Not Available
30
BAR GRAB RH BLK.
1011730067
Not Available
31
WASHER FLAT
7555783
$7,34 Unit Price incl. VAT
32
NUT; LOCK
7541929
7541925
$1,56 Unit Price incl. VAT
33
REFLECTOR RED
2670070
$15,95 Unit Price incl. VAT
34
NUT NYLOK
7542327
9999999
Not Available
35
WASHER
7555770
7558402
$1,56 Unit Price incl. VAT
36
BOLT
7515363
7512325
$4,19 Unit Price incl. VAT
37
HOUSING TAILLIGHT
5431545
9999999
Not Available
38
COVER T/L PROTECTOR
5431436
9999999
Not Available
39
RIVET(10)
7621301
9999999
Not Available
40
SCREW
7512242
$4,19 Unit Price incl. VAT
41
RIVET
7621460
$2,09 Unit Price incl. VAT
42
PICKUP;FUEL;W/STRAINER
7052081
9999999
Not Available
43
COMPRESSION RING
7080402
$3,14 Unit Price incl. VAT
44
FUEL LINE; 600 CM
8450040600
Not Available
45
SPRING
7042029
$10,49 Unit Price incl. VAT
46
FITTING OUTLET
7052023
$36,74 Unit Price incl. VAT
47
CLAMP; HOSE
7080490
9999999
Not Available
48
GROMMET
7052028
$11,54 Unit Price incl. VAT
49
FITTING;TANK OUTLET(5/16)
7052059
9999999
Not Available
50
LINE FUEL 1/8 ID 600 CM.
8360009600
Not Available
51
FITTING 90 DEG 1/8
7052095
$9,44 Unit Price incl. VAT
52
CABLE TANK RETENTION
7080473
9999999
Not Available

Find the detailed SEAT GAS TANK ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905A008) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
