FRONT TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905C001) for POLARIS 500 EFI SKS PDLTRK - 0952974 from 1995

SUSPENSION ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974 (4929052905B013)

REAR TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09 (4929052905C002)

FRONT TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905C001)

1

BOLT NYLOC BLACK

7515493

9999999

Not Available

2

ARM FR.TORQUE BLK.

1540794067

Not Available

3

SHOCK CTR.SUSP.

7041281

9999999

Not Available

4

SPRING SHIELD

5430671

9999999

Not Available

5

TOP RETAINER

5220225

$19,94 Unit Price incl. VAT

6

SPRING-SHOCK SUSP

7041140

Not Available

7

RETAINER SPRING

5210953

$11,54 Unit Price incl. VAT

8

NYLOCK NUT

7542439

$2,09 Unit Price incl. VAT

9

SCREW

7515415

9999999

Not Available

10

BUSHING

7556301

$6,29 Unit Price incl. VAT

11

PIVOT TUBE BUSHING

5020561

9999999

Not Available

12

NUT FLEXLOC

7542402

9999999

Not Available

13

WASHER

7555720

7555806

$1,56 Unit Price incl. VAT

14

SHOCK ARM WELDBLK.

1540791067

Not Available

15

BOLT

7515525

9999999

Not Available

16

SPACER

5333028

9999999

Not Available

17

BOLT

7515438

$9,44 Unit Price incl. VAT

18

SPACER OUTER

5332784

9999999

Not Available

19

IDLER WHEEL; 5.35 IN

1543018

$115,49 Unit Price incl. VAT

20

NYLOK NUT

7542324

$1,56 Unit Price incl. VAT

21

WASHER

7555716

$3,14 Unit Price incl. VAT

22

BOLT

7515307

$7,34 Unit Price incl. VAT

23

STRAP LIMITER

5410397

9999999

Not Available

24

SHAFT MOUNTING

5010149

9999999

Not Available

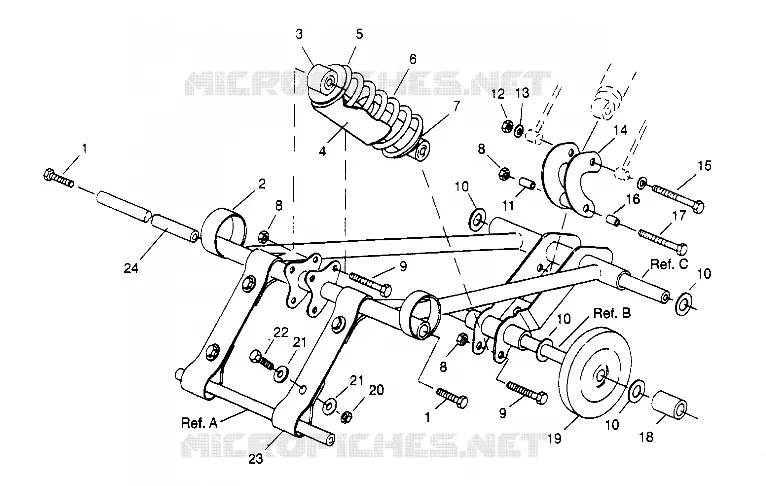

Find the detailed FRONT TORQUE ARM 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0 (4929052905C001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
