1
Engine displacement
500
2
Year
1995
3
Trim
500 EFI SKS PDLTRK - 0952974
4
Parts Catalog
HOOD ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND (4929052905A014)
5
Parts Diagram
Parts Catalog
HITCH ASSEMBLY EUROPEAN 500 EFI SKS E952574 (4929052905A013)
by
HOOD
HOOD ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND (4929052905A014)
1
PLASTI-LOCK RIVET
7621509
$2,09 Unit Price incl. VAT
2
WNDSHLD STD SMOKE EV.
5431930
9999999
Not Available
3
WASHER SPLIT LOCK
3280156
9999999
Not Available
3
NUT
3280158
9999999
Not Available
3
WASHER FLAT(10)
3280157
$4,19 Unit Price incl. VAT
4
BRKT SPEEDO/TACH
3280153
Not Available
5
HSG.ASM INST.
2652130
9999999
Not Available
6
CUSHION TACH/SPEEDO RUBBER
3280151
9999999
Not Available
7
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
7
TACHOMETER;BACKLIT(2P)
3280149
9999999
Not Available
8
INDICATOR TEMP/BATT .WARN.
4040026
9999999
Not Available
9
INDICATOR OIL/BRK WARN.
4040034
9999999
Not Available
10
INDICATOR HI-BEAM WARN.
4040013
9999999
Not Available
11
PLUG INDIC.HOLE
5430967
9999999
Not Available
12
KNOB TRIP ODOMETER LH THD.
3280186
$19,94 Unit Price incl. VAT
13
SPEEDO KILOMETER
3280159
9999999
Not Available
13
SPEEDOMETER;BACKLIT
3280148
9999999
Not Available
13
BULB TAILLIGHT/TACH/SPEEDO (10)
4030015
$8,39 Unit Price incl. VAT
14
SPEEDO CABLE
3280094
$115,49 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
HARNESS H/L (500EFI)
2460416
9999999
Not Available
17
FOIL TAPE 1.5X6
5810949
9999999
Not Available
18
SCREW
7512070
7512076
$2,09 Unit Price incl. VAT
19
O RING(HEAVY)
5410387
5410970
$2,09 Unit Price incl. VAT
20
FOAM LH HOOD
5810876
Not Available
21
FOIL RH HOOD
5810905
Not Available
21
FOAM RH HOOD
5810877
Not Available
22
FOAM HOOD CTR.
5810875
Not Available
23
HOOD RETAINER CABLE
7080521
9999999
Not Available
24
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
25
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
26
HOOD ASM 500 (Incl. 17 20-22 27 28)
2631591177
Not Available
27
FOIL HOOD FRONT
5810874
Not Available
28
FOIL HOOD CTR.
5810873
Not Available

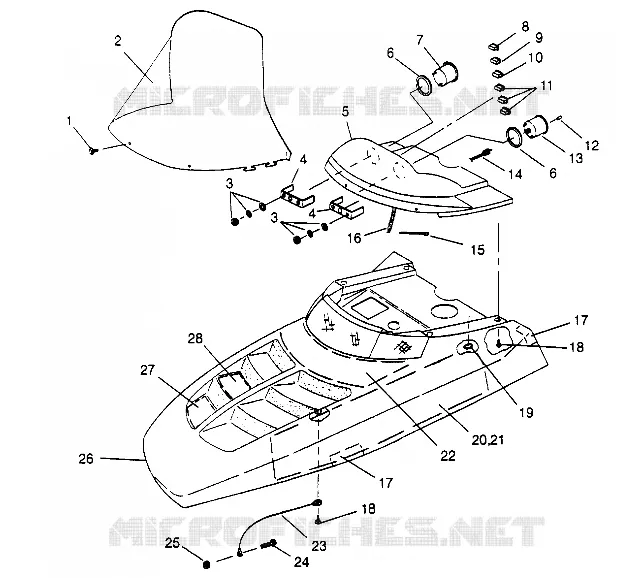

Find the detailed HOOD ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, AND (4929052905A014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
