Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
BRAKES, VALVE SYSTEM
5
Parts Diagram
Parts Catalog
REAR BRAKE CALIPER
by
CHASSIS, FRAME
BRAKES, VALVE SYSTEM
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
1
2
3
3
3
3
4
5
6
6
7
8
8
9
10
11
12
13
14
15
15
16
17
1
BOLT-BANJO 10MMX1.25 W/BLEEDER
1911112
9999999
Not Available
2
BANJO DOUBLE BOLT; 10 MM X 1.25 MM
1911194
$41,99 Unit Price incl. VAT
3
SEAL
5413212
9999999
Not Available
4
LINE-BRAKE HAND TO J/B
1911103
9999999
Not Available
5
LINE-BRAKE REAR AUX
1911106
9999999
Not Available
6
LINE-BRAKE REAR SERVICE
1911105
9999999
Not Available
7
REDUCING BRAKE VALVE
1911109
$278,24 Unit Price incl. VAT
8
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
9
LINE-BRAKE; J/B TO P/VALVE;NPT
1911200
9999999
Not Available
10
PLATE-BRAKE VALVE BLK
5250742067
Not Available
11
SCREW
7512242
$4,19 Unit Price incl. VAT
12
BOLT
7512130
$7,34 Unit Price incl. VAT
13
BRAKE PRESSURE SWITCH 10 MM X 1.25 MM
4011478
9999999
Not Available
14
BANJO BOLT; 10 MM X 1.25-6G
1910958
$14,69 Unit Price incl. VAT
15
BOLT
7517451
$10,49 Unit Price incl. VAT
16
BRAKE LINE FRONT 500
1911183
9999999
Not Available
17
LINE-BRAKE FOOT TO J/B
1911104
9999999
Not Available
18
BLOCK-DIST BRAKE LONG PISTON
1911185
1913923
$125,99 Unit Price incl. VAT

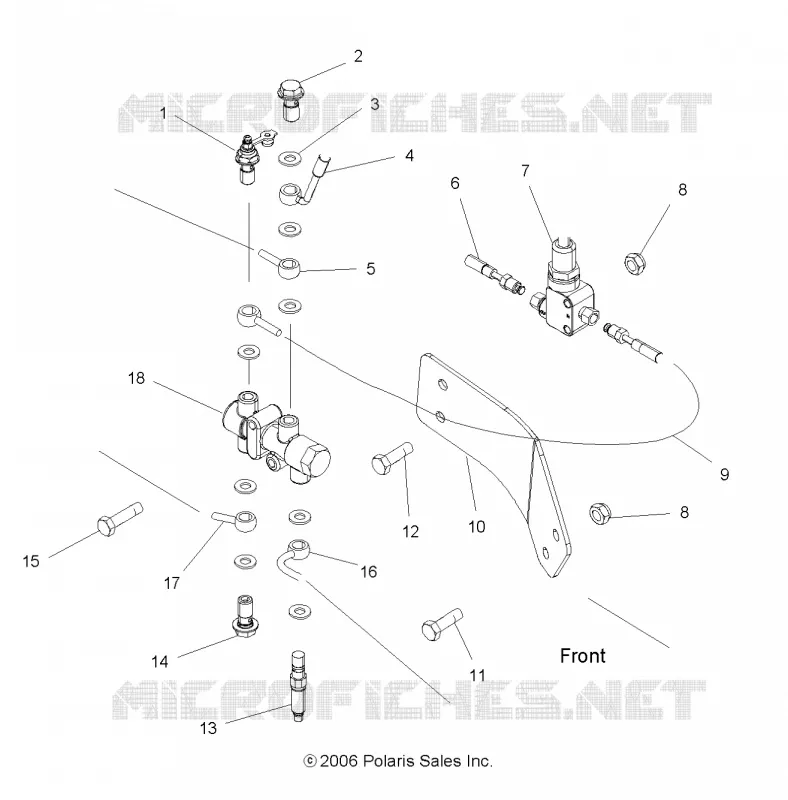

Find the detailed BRAKES, VALVE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
