1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
REAR SUSPENSION
5
Parts Diagram
Parts Catalog
FRONT SUSPENSION STRUT
by
FRONT STORAGE BOX
REAR SUSPENSION
1
1
1
1
1
1
1
2
3
4
5
6
7
8
8
9
9
9
9
10
11
12
12
12
12
13
13
13
13
14
15
15
16
17
18
19
19
20
21
22
1
2
3
3
4
5
6
7
8
9
10
1
NYLOK NUT
7547263
$6,29 Unit Price incl. VAT
2
RETAINER SPRING; STEEL
5251753
$19,94 Unit Price incl. VAT
3
SCREW
7515433
$3,14 Unit Price incl. VAT
4
COMPRESSION SPRING 120# REAR GS BLK
7043375067
Not Available
5
CAM ADJUSTMENT SPRING
5630551
$68,24 Unit Price incl. VAT
6
SHOCK-RR IRS
7043374
9999999
Not Available
7
SCREW
7515415
9999999
Not Available
8
CONTROL ARM WELD UPPER RIGHT BLACK
1015849067
Not Available
8
UPPER CONTROL ARM WELD; LEFT; GS BLK
1015848067
Not Available
9
A-ARM SHAFT; SHORT
5134882
9999999
Not Available
10
WHEEL CARRIER; RIGHT
5134985
$175,34 Unit Price incl. VAT
11
FLANGED NUT; 3/8-16
7547180
$4,19 Unit Price incl. VAT
12
BUSHING-CONTROL ARM;1.285
5436832
5439874
$4,19 Unit Price incl. VAT
13
SCR-3/8-24X3 3/4 HXFLG GR5-Y
7518523
9999999
Not Available
14
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
15
PIVOT BUSHING
5136102
$19,94 Unit Price incl. VAT
16
TUBE-PIVOT 107.26MM 10.33ID
5136101
9999999
Not Available
17
CONTROL ARM BUSHING
5437229
$11,54 Unit Price incl. VAT
18
SCR-3/8-24X6-1/2 HXFLG;GR5-Y
7518522
$13,64 Unit Price incl. VAT
19
CONTROL ARM WELD; LOWER; RIGHT; GS BLK
1016023067
Not Available
19
WELD-CONTROL LOWER LH BLK
1016022067
Not Available
20
SCREW
7517632
$10,49 Unit Price incl. VAT
21
BRKT-CONTROL-ARM PIVOT
5249289
9999999
Not Available
22
BOLT-3/8-16X7 HEX FLANGE GR5
7518365
$13,64 Unit Price incl. VAT

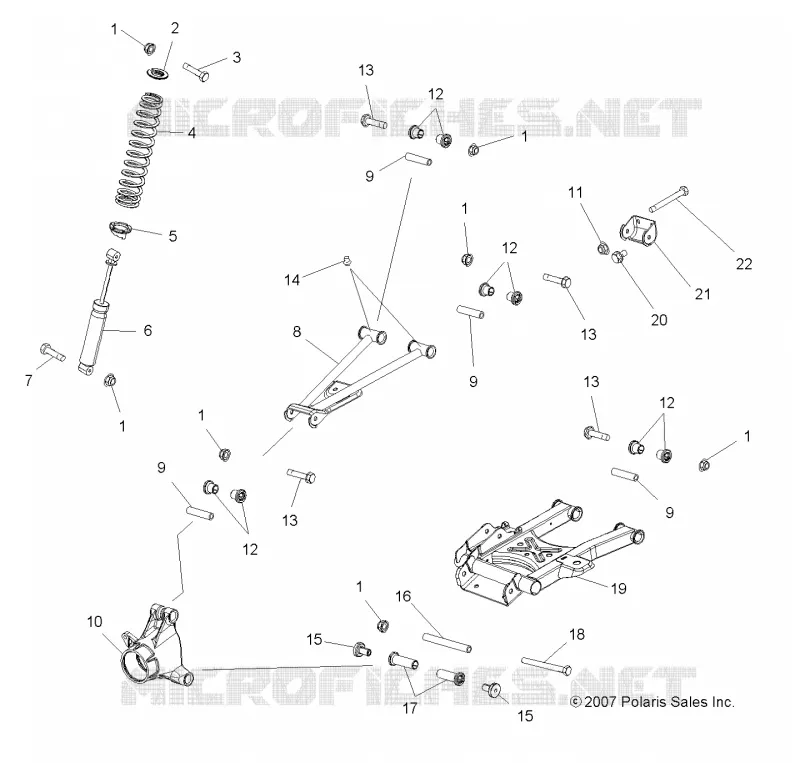

Find the detailed REAR SUSPENSION POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
