1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
CLUTCH COVER
5
Parts Diagram
Parts Catalog
by
DECALS
CLUTCH COVER
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
1
2
3
4
5
6
6
7
8
8
9
10
11
11
12
13
13
14
14
15
16
1
CLUTCH COVER ASSEMBLY; INNER
2633158
9999999
Not Available
2
ASM-COVER CLUTCH OUTER HV
2633262
2633926
$346,49 Unit Price incl. VAT
3
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
4
CLUTCH AIR INLET DUCT
5437384
9999999
Not Available
5
CLUTCH COVER SEAL; OUTER
5521738
5526450
$78,74 Unit Price incl. VAT
6
BOLT ASSEMBLY; WASHER
7517599
$10,49 Unit Price incl. VAT
7
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
8
DRAIN PLUG
5434264
$10,49 Unit Price incl. VAT
9
DUCT BOOT HI-FLOW
5412636
9999999
Not Available
10
NARROW BAND CLAMP; 70-90 MM
7081279
$5,76 Unit Price incl. VAT
11
DUCT-CLUTCH OUTLETQUAD
5436835
9999999
Not Available
12
COVER SEAL CLUTCH INNER
5412725
9999999
Not Available
13
Decal Warning Clutch Cover
7173030
Not Available
14
SCREW
7512094
$3,14 Unit Price incl. VAT
15
SCREW AND WASHER
3084205
9999999
Not Available
16
CLUTCH SEAL BRACKET
5242046
9999999
Not Available

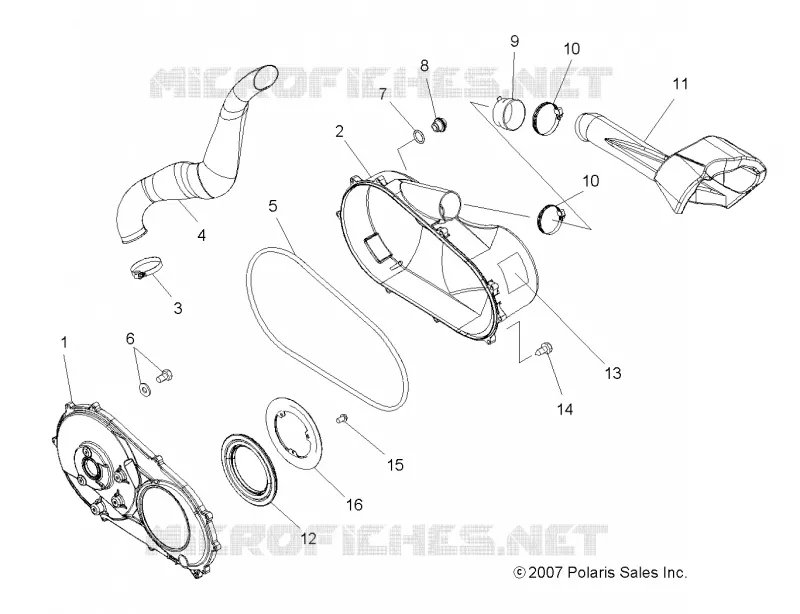

Find the detailed CLUTCH COVER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
