1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
REAR BRAKE BRAKE LINES
5
Parts Diagram
Parts Catalog
FRONT BRAKE CALIPER
by
DRIVE TRAIN, GEAR SELECTOR
REAR BRAKE BRAKE LINES
1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
15
16
17
18
1
2
3
3
4
4
5
6
7
7
7
7
7
7
8
9
9
10
11
12
1
ASM-CALIPER DH4P X2 INTL
1911179
9999999
Not Available
2
LINE-BRAKE REAR SERVICE
1911105
9999999
Not Available
3
LINE-BRAKE REAR AUX
1911106
9999999
Not Available
4
SEAL
5413212
9999999
Not Available
5
CAP SCREW
7512365
$2,09 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
7
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
8
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
9
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
10
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
13
SCREW
7512084
$2,09 Unit Price incl. VAT
14
BOLT
7512163
$7,34 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
HOSE CLAMP
7080683
$4,19 Unit Price incl. VAT
17
CLIP
7670102
$4,19 Unit Price incl. VAT
18
STRAP-BEADED CABLE TIE8
7081475
9999999
Not Available

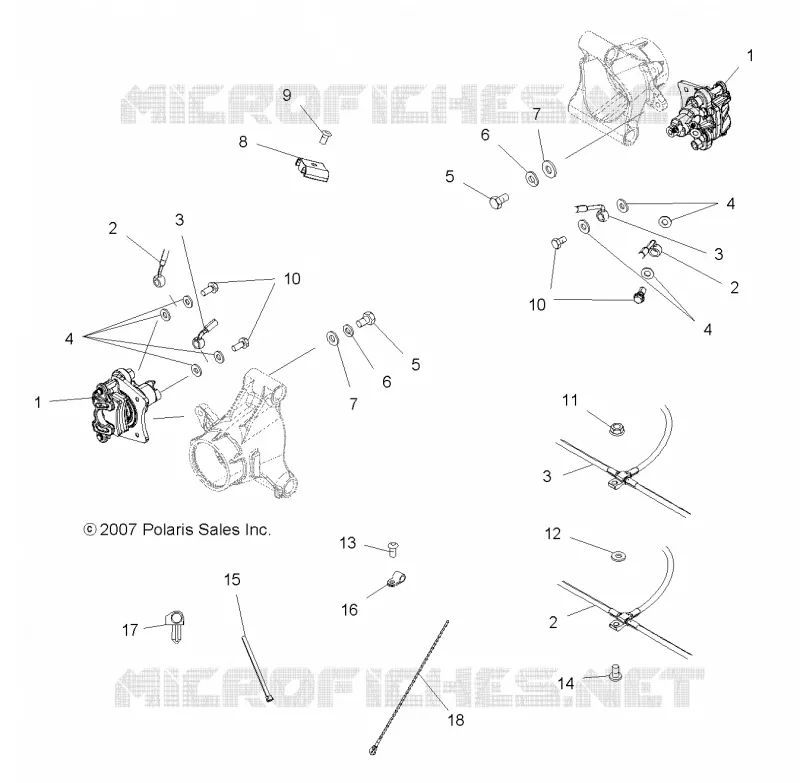

Find the detailed REAR BRAKE BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
