1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
SWITCHES AND SENSORS AND ECM
5
Parts Diagram
Parts Catalog
IGNITION SYSTEM
by
TAIL LIGHTS
SWITCHES AND SENSORS AND ECM
1
2
2
3
4
4
5
6
7
8
8
8
8
8
8
9
10
11
12
13
14
15
15
15
16
17
18
19
20
21
22
23
24
25
26
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
REGULATOR
4012384
$535,49 Unit Price incl. VAT
2
WASHER
7555746
7555904
$1,56 Unit Price incl. VAT
3
ENGINE CONTROL MODULE
4012443
9999999
Not Available
4
SCR-10-24X1 PN TRX TFS STL-Y
7518552
$7,34 Unit Price incl. VAT
5
NYLON WASHER
7555932
$4,19 Unit Price incl. VAT
6
BRAKE PRESSURE SWITCH 10 MM X 1.25 MM
4011478
9999999
Not Available
7
KEY SWITCH KEY COVER
5433534
5465307
$26,24 Unit Price incl. VAT
8
SWITCH-KEY 4 POS
4011142
4083619
Not Available
8
BLANK KEY; 22/23/27/28
4010321
4083604
$27,29 Unit Price incl. VAT
8
BLANK KEY; 20/21/67/68
4010278
4083605
$27,29 Unit Price incl. VAT
9
IGNITION SWITCH NUT
5433733
9999999
Not Available
10
O-RING
3234302
$13,64 Unit Price incl. VAT
11
TRANSMISSION SPEED SENSOR
4013908
4082135
$204,74 Unit Price incl. VAT
12
WATER TEMPERATURE SENSOR
3089892
9999999
Not Available
13
SCREW TAPPINGHEXHEAD1/4-20X.75
3234247
$10,49 Unit Price incl. VAT
14
BRKT-MOUNT VOLTAGE REG PLATED
5248725
9999999
Not Available
15
SCREW
7512024
$9,44 Unit Price incl. VAT
16
SWITCH-ROTARY 6 PIN
3233835
3236115
$225,74 Unit Price incl. VAT
17
RETAINING RING
3233834
$19,94 Unit Price incl. VAT
18
AIR TEMP SENSOR GROMMET
5436346
$9,44 Unit Price incl. VAT
19
AIR TEMPARATURE SENSOR
2410687
$283,49 Unit Price incl. VAT
20
GROMMET
3089902
9999999
Not Available
21
SENSOR-ASST PRESS
3089895
9999999
Not Available
22
SENSOR-THROTTLE POSITION
3140173
3131705
$367,49 Unit Price incl. VAT
23
SCREW
3131628
$9,44 Unit Price incl. VAT
24
SWITCH-TURF ON/OFF X2
4011966
9999999
Not Available
25
MODULE-FLASH/TURN
4011553
9999999
Not Available
26
SWITCH-HAZARD
4011761
9999999
Not Available

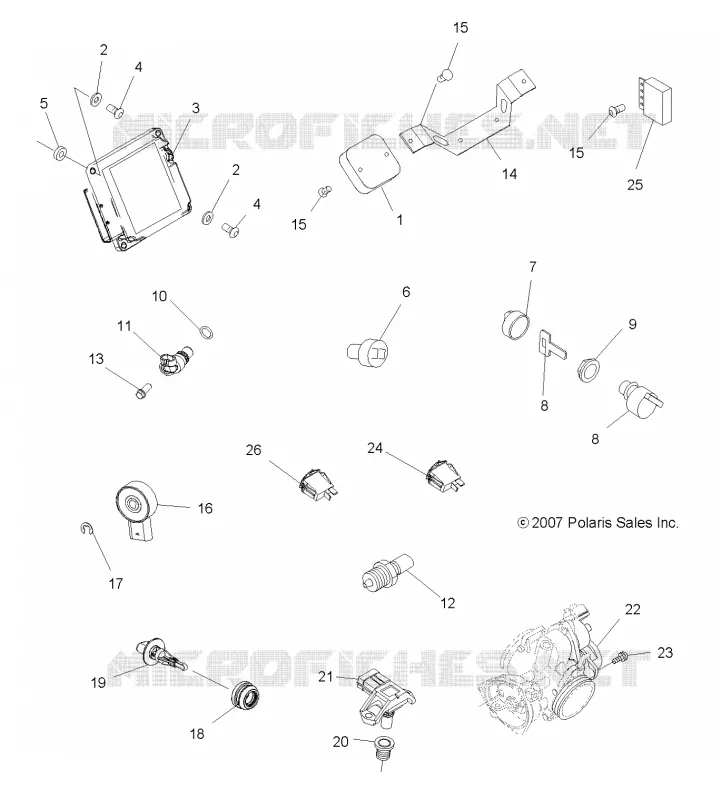

Find the detailed SWITCHES AND SENSORS AND ECM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
