1
Engine displacement
500
2
Year
2008
3
Trim
SPORTSMAN TOURING 500 EFI QUAD - A08DN50EA
4
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, MAIN GEARCASE OUTPUT SHAFT
by
BATTERY
DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS
-
1
1
2
2
3
4
5
5
6
6
7
-
-
1
2
3
4
5
6
7
-
ASM-GEARCASE X2 500EFI
1332624
9999999
Not Available
1
CUP WASHER
3234091
$17,84 Unit Price incl. VAT
2
SHIFT FORK
3234077
$335,99 Unit Price incl. VAT
3
SHIFT COLLAR
3234073
$57,74 Unit Price incl. VAT
4
COMPRESSION SPRING
3234089
$52,49 Unit Price incl. VAT
5
COMPRESSION SPRING
3234078
$47,24 Unit Price incl. VAT
6
RETAINING RING
3234090
$19,94 Unit Price incl. VAT
7
RAIL-SHIFT SHAFT
3234079
3235542
$52,49 Unit Price incl. VAT

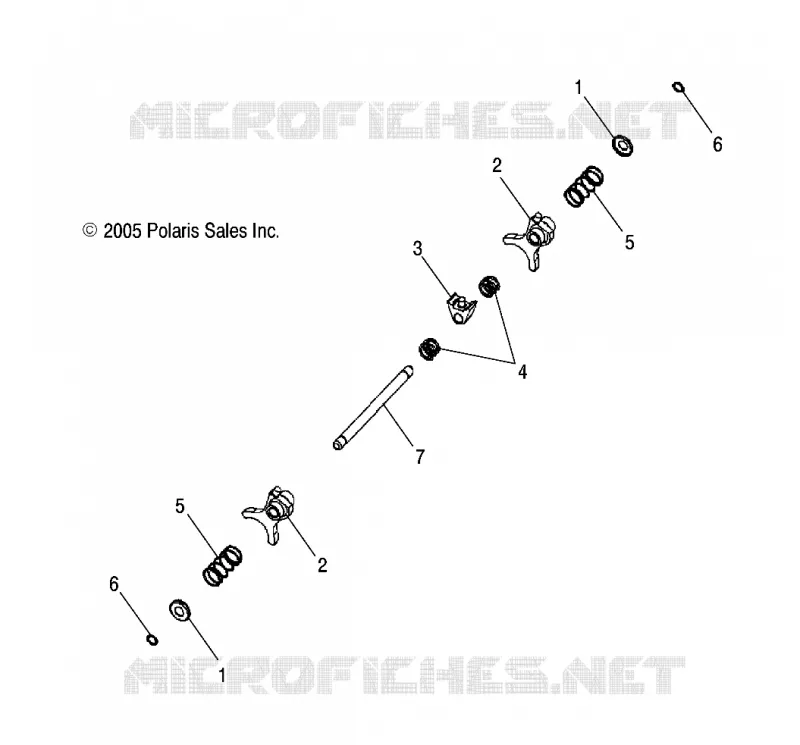

Find the detailed DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
