Parts Catalog
BRAKES, FOOT PEDAL AND MASTER CYLINDER
5
Parts Diagram
Parts Catalog
BODY, PASSENGER SEAT BOTTOM AND SEAT BACK
by
FRONT BRAKE BRAKE LEVER AND MASTER CYLINDER
BRAKES, FOOT PEDAL AND MASTER CYLINDER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
13
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
LINE-BRAKE FOOT TO J/B
1911104
9999999
Not Available
3
SEAL
5413212
9999999
Not Available
4
CLEVIS PIN
7661830
$7,34 Unit Price incl. VAT
5
ASM-M/CYL FOOT 3/4 ;3.70 LONG
1910995
9999999
Not Available
6
BOLT
7515306
9999999
Not Available
7
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
8
BRAKE RESERVOIR ASSEMBLY; REAR
1910674
9999999
Not Available
9
BOLT
7512240
9999999
Not Available
10
HOSE-RESERVOIR TREK QUAD
1911107
9999999
Not Available
11
HOSE CLAMP
7080003
$2,09 Unit Price incl. VAT
12
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
13
SPRING-TORSION BRAKE
7043126
9999999
Not Available
14
WASHER
7555919
$7,34 Unit Price incl. VAT
15
PEDAL PIVOT BUSHING
5433189
$7,34 Unit Price incl. VAT
16
WELD-BRAKE PEDALBLK
1015631067
Not Available
17
PIN-COTTER 5/64X3/4-Y
7661900
$6,29 Unit Price incl. VAT
18
COTTER PIN
7661401
$1,56 Unit Price incl. VAT

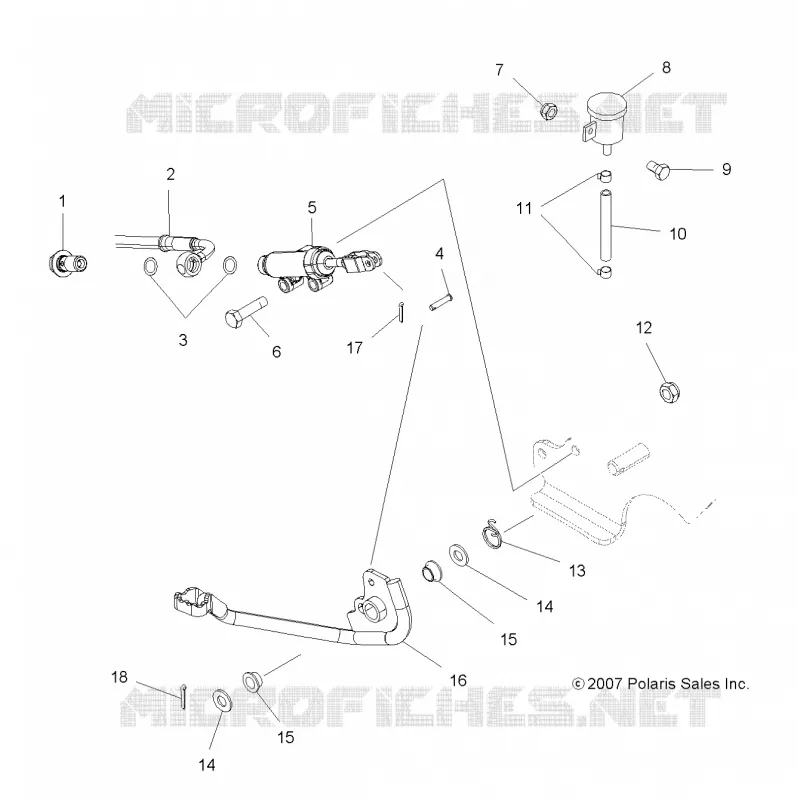

Find the detailed BRAKES, FOOT PEDAL AND MASTER CYLINDER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
