Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
REAR BRAKE BRAKE LINES
5

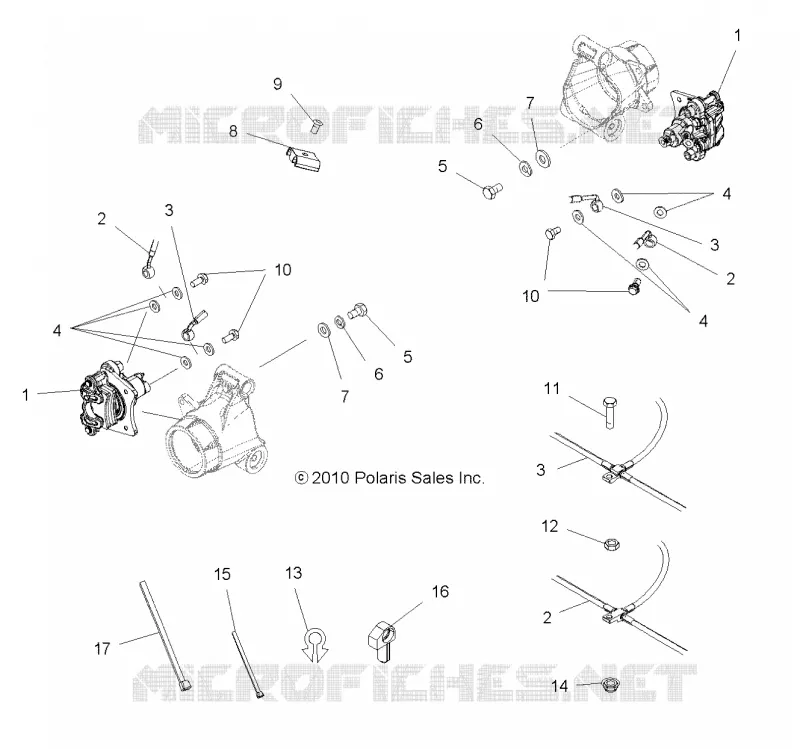

Parts Diagram
Parts Catalog
FRONT BRAKE BRAKE LINES
by
BRAKES, VALVE SYSTEM
REAR BRAKE BRAKE LINES
1
1
2
2
2
3
3
3
4
4
4
5
5
6
6
7
7
8
9
10
10
11
12
13
14
15
16
17
1
2
2
2
2
3
3
3
3
3
4
5
5
5
5
5
5
5
5
6
7
8
9
9
9
10
11
12
13
14
14
15
16
16
16
16
17
1
BRAKE CALIPER ASSEMBLY
1911122
Not Available
2
LINE-BRAKE REAR SERVICE
1911105
9999999
Not Available
3
LINE-BRAKE REAR AUX
1911344
9999999
Not Available
4
SEAL
5413212
9999999
Not Available
5
BOLT
7512457
$7,34 Unit Price incl. VAT
6
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
7
WASHER .390 IN X .750 IN X .0
7556188
9999999
Not Available
8
CLIP-RETAINING DUAL .250 LINE
7670126
$9,44 Unit Price incl. VAT
9
SCREW 10-24X5/8 (10)
7517756
$2,09 Unit Price incl. VAT
10
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
11
SCREW
7515153
9999999
Not Available
12
HEX NUT
7542105
$7,34 Unit Price incl. VAT
13
CLIP SNAP-IN
7080756
$9,44 Unit Price incl. VAT
14
NYLOK FLANGED NUT
7542153
$3,14 Unit Price incl. VAT
15
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
16
CLIP
7670102
$4,19 Unit Price incl. VAT
17
CABLE TIE; 11 IN
7080492
$5,24 Unit Price incl. VAT
