Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
VALVES AND CAMSHAFT
5
Parts Diagram
Parts Catalog
OIL FILTER
by
WATER PUMP
VALVES AND CAMSHAFT
1
2
3
3
4
5
6
6
6
7
7
7
8
9
10
11
11
12
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
1
CAMSHAFT ASSEMBLY
3085855
9999999
Not Available
2
EXHASUT ROCKER ARM ASSEMBLY
3084913
9999999
Not Available
3
INTAKE ROCKER ARM ASSEMBLY
3084910
9999999
Not Available
4
TENSIONER ASSEMBLY
3086493
9999999
Not Available
5
PIN
3087132
9999999
Not Available
6
NUT(10)
3084912
9999999
Not Available
7
ADJUSTING SCREW
3084911
9999999
Not Available
8
PLUG
3087129
9999999
Not Available
9
ROCKER SHAFT
3084909
9999999
Not Available
10
GASKET PLUG
3087130
9999999
Not Available
11
COLLET VALVE
3084908
9999999
Not Available
12
VALVE SPRING RETAINER
3087203
9999999
Not Available
13
VALVE SPRING
3086892
9999999
Not Available
14
DOWEL PIN
3086838
9999999
Not Available
15
LEVER RELEASE
3085348
9999999
Not Available
16
RETURN SPRING
3085076
9999999
Not Available
17
SPRING TENSIONER
3087131
9999999
Not Available
18
PIN DOWEL
3084899
9999999
Not Available
19
SPROCKET
3084914
9999999
Not Available
20
GUIDE CHAIN
3084916
9999999
Not Available
21
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
22
TIMING CHAIN
3084915
9999999
Not Available
23
ASM. BOLT PIVOT LEVER
3084924
9999999
Not Available
24
LEVER
3084917
9999999
Not Available
25
INTAKE VALVE
3085349
9999999
Not Available
26
EXHAUST VALVE
3085412
9999999
Not Available
27
TENSIONER GASKET
3086448
9999999
Not Available
28
BOLT FLANGE
3083361
9999999
Not Available

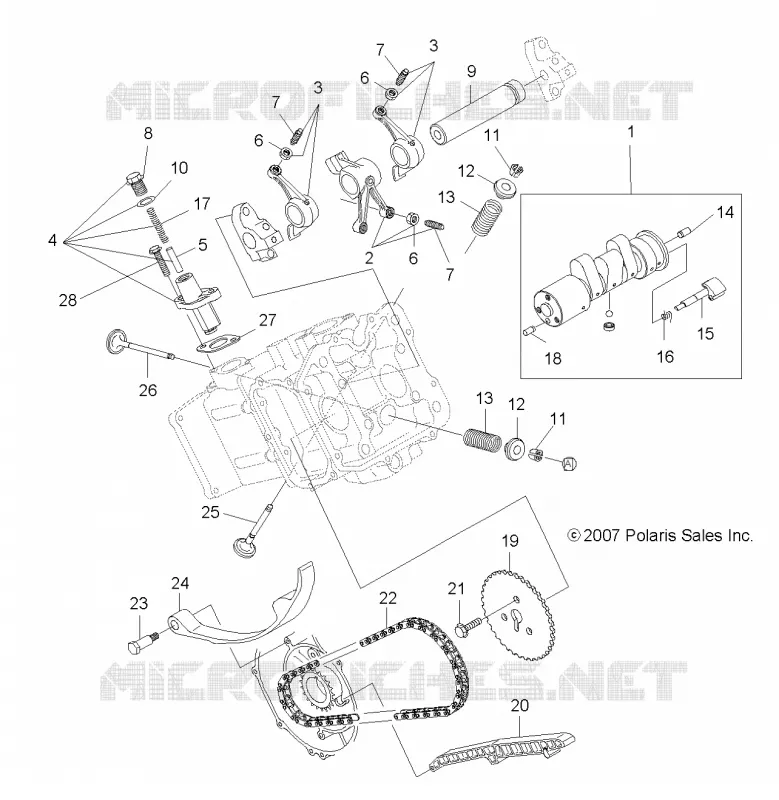

Find the detailed VALVES AND CAMSHAFT POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
