Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
WIRE HARNESSES
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, PRIMARY CLUTCH
by
IGNITION SYSTEM
WIRE HARNESSES
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
1
HARNESS-MAIN SPM 500HO INT L
2411754
9999999
Not Available
1
HARNESS-MAIN SPM 500HO INT L
2411602
9999999
Not Available
2
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
3
FUSIBLE LINK KIT; 0.8 MM
2202607
$73,49 Unit Price incl. VAT
4
HARNESS-WINCH PREWIRE
2411613
9999999
Not Available
5
RELAY
4011141
9999999
Not Available
6
DIODE-6AMP 1/4 3/16 TERM
2411035
$104,99 Unit Price incl. VAT
7
ATC 20 AMP; FUSE
4011683
$18,89 Unit Price incl. VAT
8
ATC FUSE; 15 AMP
4011682
9999999
Not Available
9
FUSE-ATC 5 AMP
4011681
9999999
Not Available
10
SCREW
7512024
$9,44 Unit Price incl. VAT
11
BRKT-FUSE BLOCK
5250236
9999999
Not Available
12
10 AMP CIRCUT BREAKER
2410692
$52,49 Unit Price incl. VAT
13
DECAL-FUSE BLOCK
7171032
9999999
Not Available
14
HARNESS-WINCH SWITCH EXTENSION
2411686
9999999
Not Available
15
CLAMP-HARNESS FERRITE
4013275
9999999
Not Available

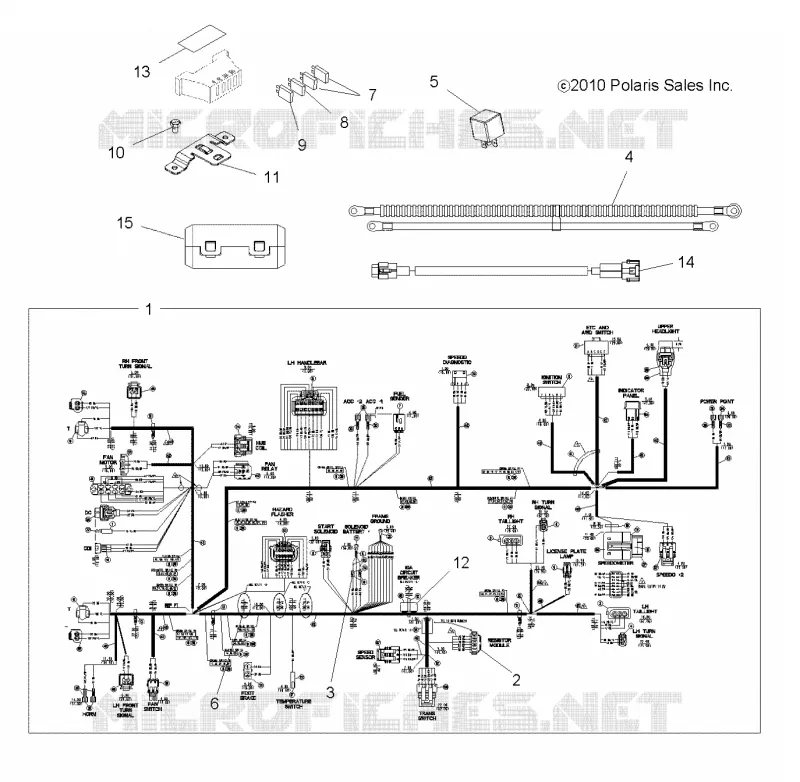

Find the detailed WIRE HARNESSES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
