Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
ENGINE, CARBURETOR, LOWER
5
Parts Diagram
Parts Catalog
BATTERY
by
ENGINE, CARBURETOR, UPPER
ENGINE, CARBURETOR, LOWER
-
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
2
3
3
4
4
5
6
7
-
CARBURETOR ASSEMBLY
3131707
$992,24 Unit Price incl. VAT
1
CABLE GUIDE
3084696
9999999
Not Available
2
THROTTLE SHAFT ASM.
3130931
$120,74 Unit Price incl. VAT
3
RING
3130932
9999999
Not Available
4
SPRING
3130927
$10,49 Unit Price incl. VAT
5
SCREW
3130933
$4,19 Unit Price incl. VAT
6
WASHER
3130926
9999999
Not Available
7
CASE
3130925
$104,99 Unit Price incl. VAT
8
SEAL
3130515
9999999
Not Available
9
O-RING
3130928
9999999
Not Available
10
NEEDLE VALVE; 1.5
3131359
$136,49 Unit Price incl. VAT
11
JET PILOT #40
3130624
$52,49 Unit Price incl. VAT
12
SCREW
3131475
9999999
Not Available
13
VALVE THROTTLE 120
3130907
$83,99 Unit Price incl. VAT
14
FLOAT ASSEMBLY
3130921
$125,99 Unit Price incl. VAT
15
SEAL
3130917
$13,64 Unit Price incl. VAT
16
FLOAT BODY ASSEMBLY
3130923
$125,99 Unit Price incl. VAT
17
SCREW
3130935
$10,49 Unit Price incl. VAT
18
RING
3130919
9999999
Not Available
19
MAIN JET#155
3130571
3130570
$16,79 Unit Price incl. VAT
20
O-RING
3130239
9999999
Not Available
21
DRAIN PLUG
3130321
$41,99 Unit Price incl. VAT
22
CLIP
3131242
9999999
Not Available
23
CABLE ADJUSTER ASSEMBLY
3131295
9999999
Not Available
24
WASHER
3131296
9999999
Not Available
25
SPRING
3130010
$18,89 Unit Price incl. VAT
26
SCREW (10)
3087073
3130924
$3,14 Unit Price incl. VAT
27
COVER
3087071
9999999
Not Available
28
O-RING
3090008
3130929
$20,99 Unit Price incl. VAT

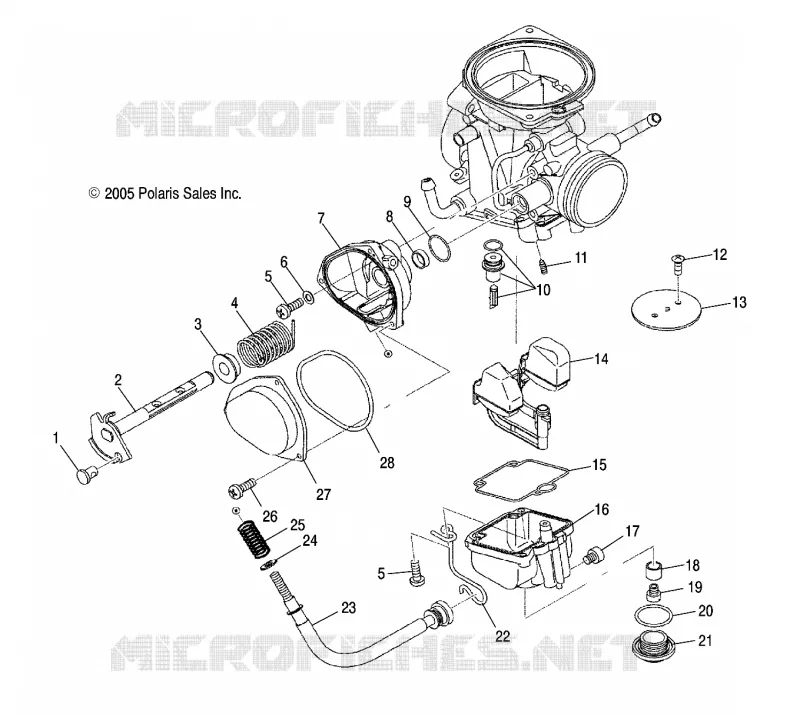

Find the detailed ENGINE, CARBURETOR, LOWER POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
