1
Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
EXHAUST
5
Parts Diagram
Parts Catalog
CYLINDER AND HEAD
by
FLYWHEEL COVER
EXHAUST
1
1
2
2
3
3
4
5
6
6
7
7
8
8
9
10
11
12
12
13
13
13
13
14
15
16
17
18
19
20
20
21
22
23
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
WASHER RUBBER
5410436
9999999
Not Available
4
MFOLD WELD 1.625 HGH TMP PWDR BLK PAINT
1262217489
Not Available
5
SILENCER BRACKET; FRAME; PLTD
5241663
$19,94 Unit Price incl. VAT
6
VIBRATION DAMPENER
5412659
$7,34 Unit Price incl. VAT
7
BUSHING
5010192
$12,59 Unit Price incl. VAT
8
BOLT
7515316
$4,19 Unit Price incl. VAT
9
EXHST SILENCER HGH TEMP POWDER PAINT BLK
1261042489
Not Available
10
CLEAN OUT WASHER; .51 X .75 X .09
7556230
$2,09 Unit Price incl. VAT
11
BOLT
7512666
$4,19 Unit Price incl. VAT
12
EXHAUST SEAL
5243518
$52,49 Unit Price incl. VAT
13
SPRING
7041804
$16,79 Unit Price incl. VAT
14
EXHST PIPE WELD HGH TMP PWDR PNT BLK
1261898489
Not Available
15
SCREW
7515197
$2,09 Unit Price incl. VAT
16
WASHER
7555935
$4,19 Unit Price incl. VAT
17
SCREW
7517386
$2,09 Unit Price incl. VAT
18
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
19
WASHER SPRING
3080051
9999999
Not Available
20
NUT
3087199
9999999
Not Available
20
FLANGE NUT
3082910
9999999
Not Available
21
EXHAUST HEAT SHIELD
5250184
$68,24 Unit Price incl. VAT
22
EXHAUST SHIELD; OUTER
5254444
9999999
Not Available
23
GROMMET-.37IDX.50ODX.25GROOVE
5414139
9999999
Not Available

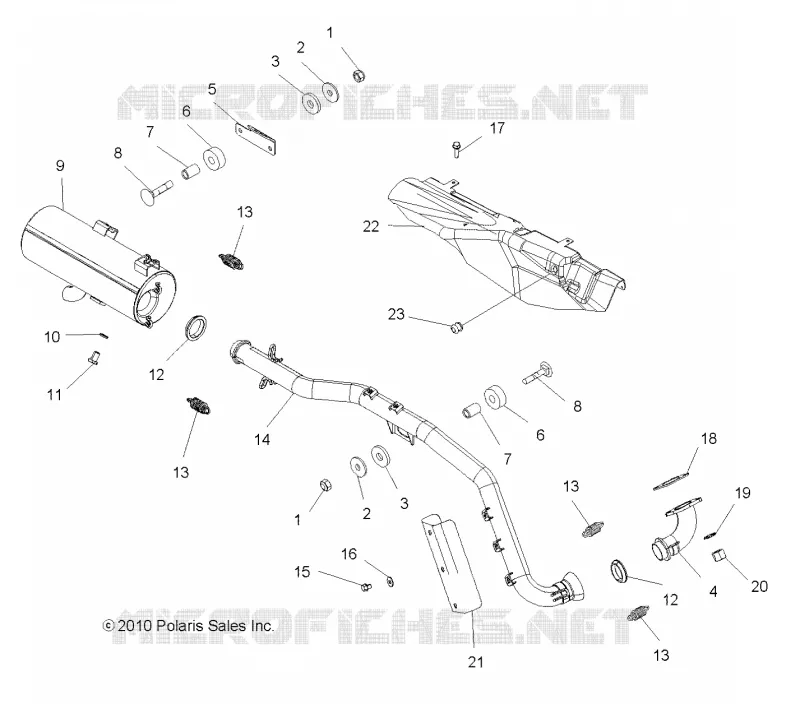

Find the detailed EXHAUST POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
