1
Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
STEERING, HANDLEBAR CONTROLS
5
Parts Diagram
Parts Catalog
REAR SUSPENSION
by
MIRRORS
STEERING, HANDLEBAR CONTROLS
1
1
2
3
4
4
5
6
7
8
9
10
11
12
13
1
HANDLEBAR GRIP; GLOSS BLACK
5413578070
Not Available
2
HANDLEBAR SWITCH; LEFT
4012435
9999999
Not Available
3
BRKT-POD MOUNTINGBLK
5244969067
Not Available
4
HANDLEBAR WITH MOUNT WELD; GS BLK
1015562067
Not Available
4
HANDLEBAR WELD WITH MOUNT; GS BLK
1018375067
Not Available
5
SCREW
7515189
9999999
Not Available
6
BLOCK-HANDLEBAR; PEG;89 ID
5631972
$62,99 Unit Price incl. VAT
7
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
8
SCREW
7517317
$6,29 Unit Price incl. VAT
9
HANDLEBAR BLOCK; .89 ID
5631973
$62,99 Unit Price incl. VAT
10
POD RECEPTACLE MOUNT; 12 VOLT
4010638
$52,49 Unit Price incl. VAT
11
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
12
CABLE-CHOKE FRICTION 40
7081171
7081008
$152,24 Unit Price incl. VAT
13
CHOKE NUT; 24 MM X 1.5 MM
7080922
$5,76 Unit Price incl. VAT

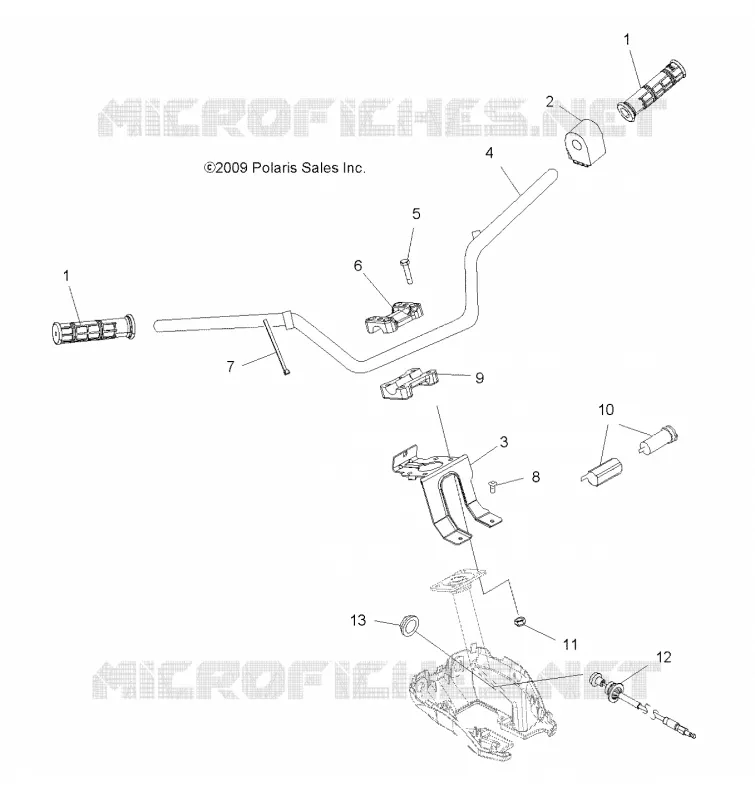

Find the detailed STEERING, HANDLEBAR CONTROLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
