1
Engine displacement
500
2
Year
2011
3
Trim
SPORTSMAN FOREST 500 - A11MH50FF
4
Parts Catalog
REAR CAB, SEAT AND FOOTWELLS
5
Parts Diagram
Parts Catalog
HEADLIGHT POD
by
REAR RACK
REAR CAB, SEAT AND FOOTWELLS
1
1
2
3
4
5
6
7
8
9
9
9
10
10
10
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
1
SEAT ASMBLK
2683433070
Not Available
1
COVERING-SEAT BLK
2683434070
Not Available
2
SPRING LATCH
7041370
$17,84 Unit Price incl. VAT
3
SCREW(10)
7511930
$4,19 Unit Price incl. VAT
4
SEAT LATCH RETAINER
5250745
9999999
Not Available
5
WASHER
7555792
$9,44 Unit Price incl. VAT
6
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT
7
CAB; REAR; RIGHT; SB GRN MTLC; SPORTSMAN
5436319498
Not Available
8
SEAT LATCH
1040387
9999999
Not Available
9
TUFLOK RIVET
7661855
$2,09 Unit Price incl. VAT
10
FOOTWELL; RIGHT SIDE; GLOSS BLACK
5436932070
Not Available
10
FOOTWELL-BASIC; LEFT; GLOSS BLACK
5436931070
Not Available
11
SCREW
7517230
$2,09 Unit Price incl. VAT
12
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
13
CAB FOIL REAR FRONT
5813177
9999999
Not Available
14
FOIL-REAR CAB;EDGE
5813029
$83,99 Unit Price incl. VAT
15
FOIL-REAR CABMIDDLE
5813030
9999999
Not Available
16
CAB FOIL; REAR
5813043
9999999
Not Available
17
MOUNT GROMMET; RUBBER
5412623
9999999
Not Available
18
BLIND RIVET
7621403
$2,09 Unit Price incl. VAT
19
BRACKET; LEVER RETAINER
5211033
9999999
Not Available
20
BUMPER SHORT RUBBER
5412067
$7,34 Unit Price incl. VAT

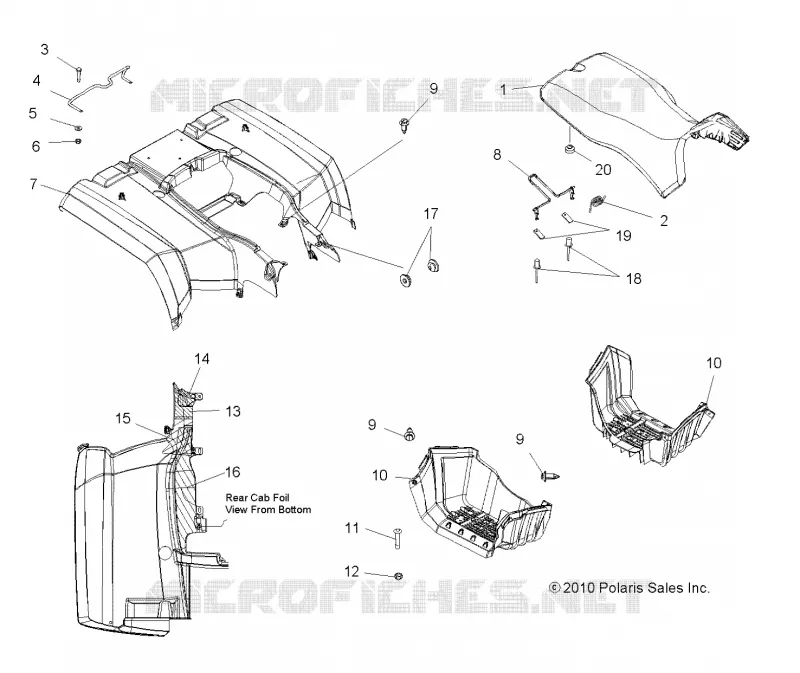

Find the detailed REAR CAB, SEAT AND FOOTWELLS POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
