SUSPENSION, A-ARM AND STRUT MOUNTING
5
Parts Diagram
Parts Catalog
STEERING POST
by
FRONT SUSPENSION STRUT
SUSPENSION, A-ARM AND STRUT MOUNTING
1
1
2
3
4
4
5
6
7
8
8
9
10
10
11
11
12
12
1
2
3
4
5
6
6
7
8
9
10
10
10
11
12
1
RIGHT HAND A FRAME KIT
2202907
$241,49 Unit Price incl. VAT
1
LEFT HAND A FRAME KIT
2202906
$241,49 Unit Price incl. VAT
2
SHAFT-A-ARM(4X4)
5133806
$52,49 Unit Price incl. VAT
3
BALL JOINT BOOT; GREASLESS
5412658
$9,44 Unit Price incl. VAT
4
A-ARM BUSHING; LONG; 102.36 MM
5436973
$9,44 Unit Price incl. VAT
5
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
6
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
7
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
8
CV SHIELD FRONT RIGHT SIDE GLOSS BLACK
5435029070
Not Available
8
CV SHIELD; FRONT; LEFT SIDE; GLOSS BLACK
5435028070
Not Available
9
SCREW
7512084
$2,09 Unit Price incl. VAT
10
SCREW
7512492
$2,09 Unit Price incl. VAT
11
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
12
WASHER
7555832
$4,19 Unit Price incl. VAT

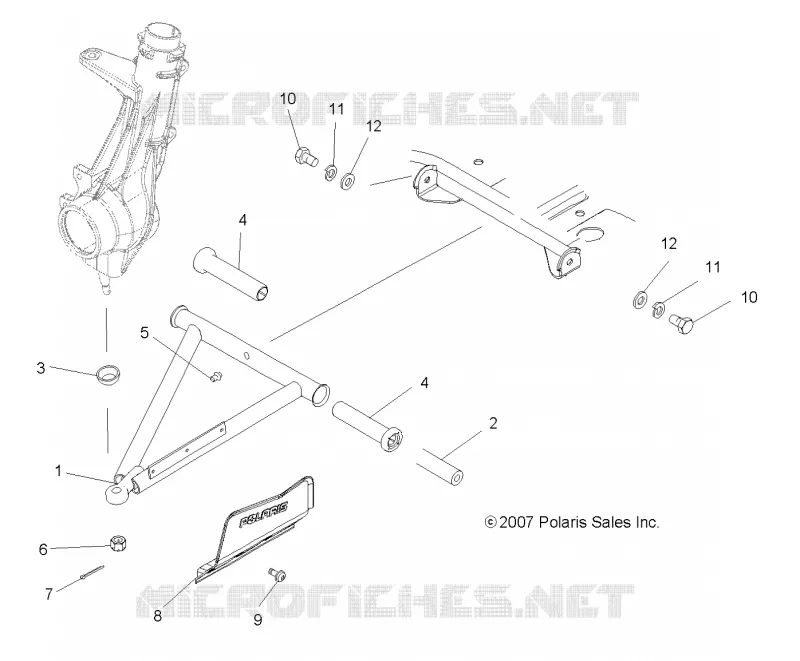

Find the detailed SUSPENSION, A-ARM AND STRUT MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
