Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
IGNITION SYSTEM
5
Parts Diagram
Parts Catalog
HEADLIGHTS
by
SWITCHES AND SENSORS AND CONTROL MODULES
IGNITION SYSTEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
3
1
IGNITION COIL ASSEMBLY
3089260
9999999
Not Available
2
PLATE ASSEMBLY
3090061
9999999
Not Available
3
STATOR
3089249
9999999
Not Available
4
O-RING
3084978
9999999
Not Available
5
BEARING; METAL
3084972
9999999
Not Available
6
SPARKPLUG CAP
3084980
9999999
Not Available
7
BOLT AND WASHER ASSEMBLY
3081657
9999999
Not Available
8
OIL SEAL
3084973
9999999
Not Available
9
SPARK PLUG
3070172
$7,34 Unit Price incl. VAT
10
ASM-SCREW AND WASHER
3089251
9999999
Not Available
11
FLYWHEEL WITH RING GEAR
3089247
9999999
Not Available
12
SCREW&WASHER ASM.
3084976
9999999
Not Available
13
BAND-PULSE
3089250
9999999
Not Available
14
PULSER COIL
3089254
9999999
Not Available
15
SCREW&WASHER ASM(10)
3081256
9999999
Not Available
16
CAPACITOR DISCHARGE IGNITION (CDI) SYTM
3089238
9999999
Not Available
17
ASM-PLATE
3089972
9999999
Not Available
18
BOLT
7512007
$7,34 Unit Price incl. VAT
19
SCREW
7512024
$9,44 Unit Price incl. VAT
20
BRKT-CDI DIGITAL LONG
5246747
9999999
Not Available
21
PAD
5810317
9999999
Not Available
22
NUT NYLOK 10-24 Y
7541925
$1,56 Unit Price incl. VAT

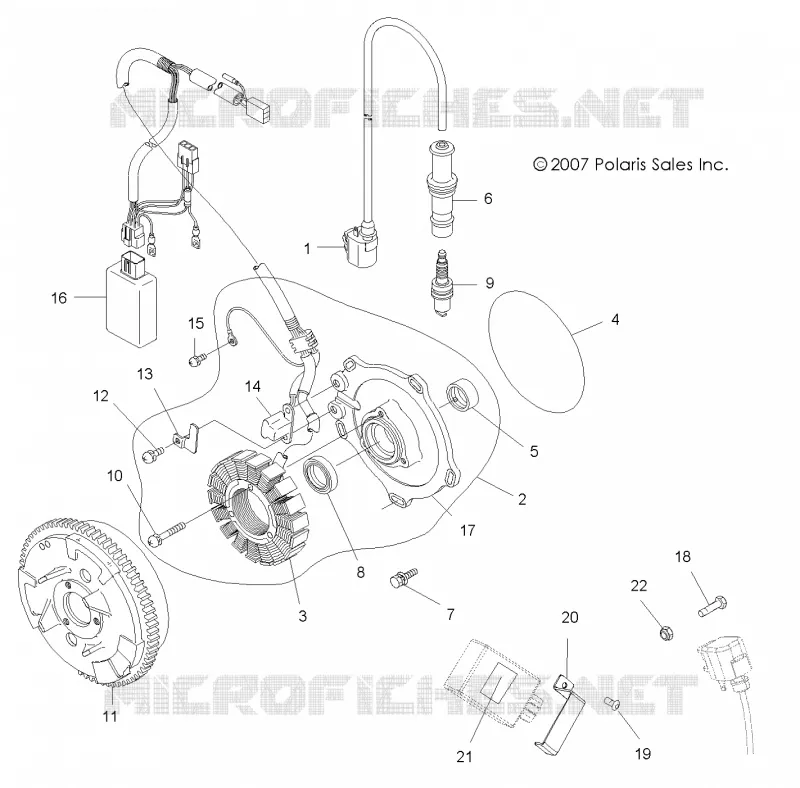

Find the detailed IGNITION SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
