Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
BRAKE LINES
5
Parts Diagram
Parts Catalog
BODYWORK
by
BRAKES, BRAKE PEDAL AND REAR MASTER CYLINDER
BRAKE LINES
1
1
1
1
1
2
2
2
2
2
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
1
2
3
4
1
BANJO BOLT; 10 MM X 1.00
1910499
$10,49 Unit Price incl. VAT
2
SEAL
5413212
9999999
Not Available
3
BRAKE LINE POD; STAINLESS; 22.56
1910470
$167,99 Unit Price incl. VAT
4
BOLT-BANJO 10MMX1 W/BLEEDER SC
1910886
$19,94 Unit Price incl. VAT
5
ROSEBUD CLIP
4020149
$12,59 Unit Price incl. VAT
6
BRAKE LINE; FRONT; LEFT
1910838
$141,74 Unit Price incl. VAT
7
RIVET
7621462
$2,09 Unit Price incl. VAT
8
CLAMP-CABLE NYLON 5/16
7080960
9999999
Not Available
9
CABLE TIE
7080138
$5,24 Unit Price incl. VAT
10
SCREW
7512024
$9,44 Unit Price incl. VAT
11
BRAKE LINE; FRONT; RIGHT
1910839
$141,74 Unit Price incl. VAT
12
CROSS FITTING
7052292
$73,49 Unit Price incl. VAT
13
LINE-BRAKE JB TO REAR SS CDS
1910770
9999999
Not Available
14
LINE-BRAKE FT M/C TO RR CDS
1910769
9999999
Not Available

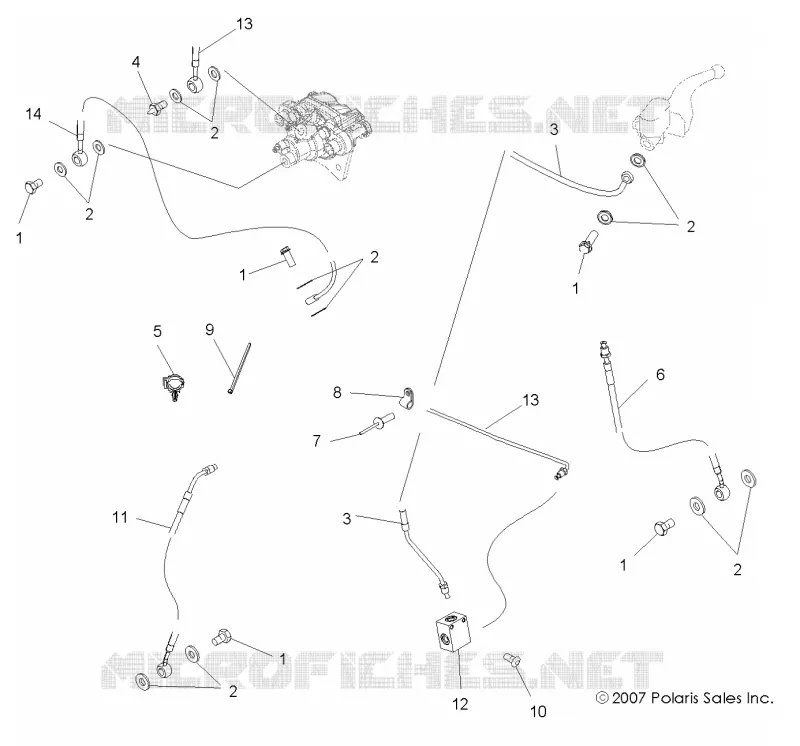

Find the detailed BRAKE LINES POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
