Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
DRIVE TRAIN, GEAR SELECTOR
5
Parts Diagram
Parts Catalog
DRIVE TRAIN, FRONT PROP SHAFT
by
DRIVE TRAIN, MAIN GEARCASE
DRIVE TRAIN, GEAR SELECTOR
1
2
3
4
5
6
6
7
8
9
10
10
11
1
COVER SHIFT KNOB H/R.
5411006
9999999
Not Available
2
SCREW
7512024
$9,44 Unit Price incl. VAT
3
KNOB-GEAR SELECTOR SHIFT
5411007
9999999
Not Available
4
GROMMET HR SHIFTER
5411008
9999999
Not Available
5
WELD-GEAR SELECTOR;MATTE BLK
1012797458
Not Available
6
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
7
FLANGE NUT
7542343
$9,44 Unit Price incl. VAT
8
BOLT
7515306
9999999
Not Available
9
GEAR SELECTOR MOUNT
5435042
$12,59 Unit Price incl. VAT
10
BOLT KIT
7515175
$7,34 Unit Price incl. VAT
11
SHIFT LINKAGE ASSEMBLY 21.19 IN
1821489
9999999
Not Available

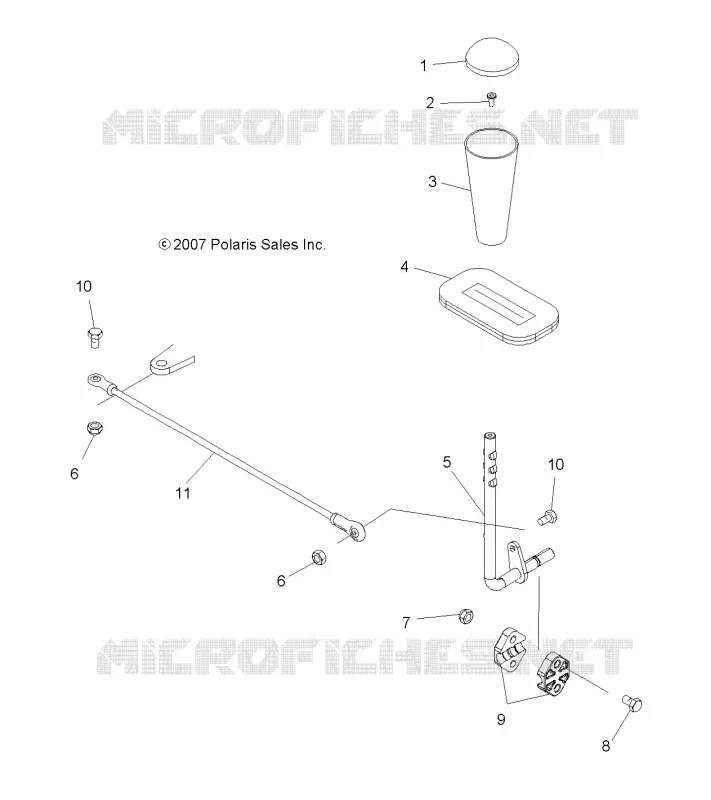

Find the detailed DRIVE TRAIN, GEAR SELECTOR POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
