Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
WATER PUMP
5
Parts Diagram
Parts Catalog
CAMSHAFT VALVES
by
MANUALS INFORMATION
WATER PUMP
1
2
3
3
4
5
6
6
7
8
9
10
11
1
THERMOSTAT
3084940
9999999
Not Available
2
FLANGE BOLT
3084877
9999999
Not Available
3
HOSE CLAMP
3086774
9999999
Not Available
4
HOSE MAIN
3085857
9999999
Not Available
5
BOLT FLANGE(10)
3085359
9999999
Not Available
6
FLAT WASHER
7555998
$2,09 Unit Price incl. VAT
7
WATER PUMP COVER
3085351
9999999
Not Available
8
WATERPUMP GASKET
3086840
9999999
Not Available
9
SELF-LOCK NUT
3085077
9999999
Not Available
10
IMPELLER
3084935
9999999
Not Available
11
SEAL WASHER
3084942
9999999
Not Available

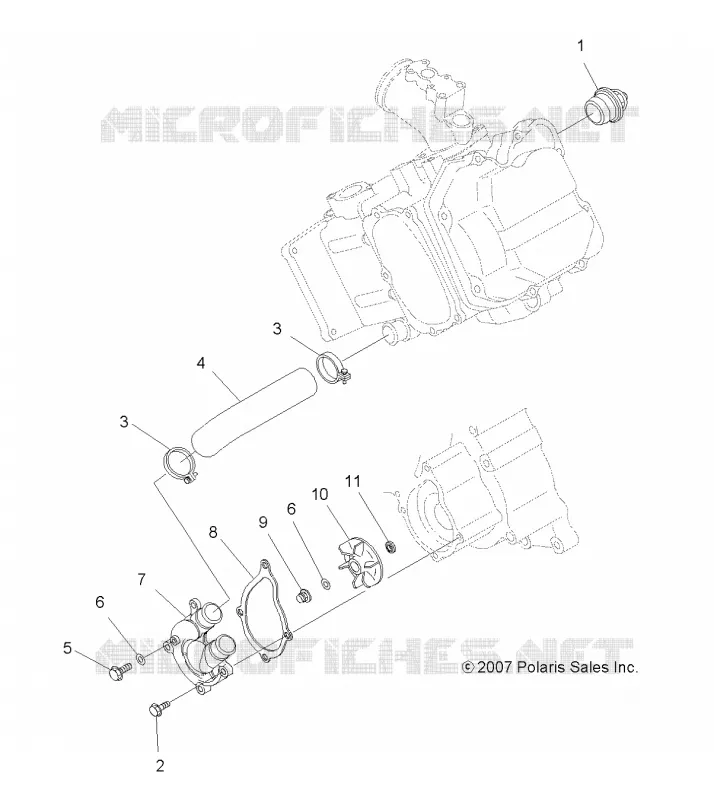

Find the detailed WATER PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
