Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
ENGINE, AIR INTAKE SYSTEM
5
Parts Diagram
Parts Catalog
WIRE HARNESS
by
ENGINE, CARBURETOR MOUNTING AND FUEL PUMP AND LINES
ENGINE, AIR INTAKE SYSTEM
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
29
1
SCREW
7517317
$6,29 Unit Price incl. VAT
2
INLET DUCT AIRBOX COVER
5436944
9999999
Not Available
3
INTAKE GASKET
5411422
$10,49 Unit Price incl. VAT
4
AIRBOX COVER
5432868
9999999
Not Available
5
AIRBOX COVER SEAL
5812829
5813949
$52,49 Unit Price incl. VAT
6
SCREW
7515179
$4,19 Unit Price incl. VAT
7
FLAT WASHER
7555859
$2,09 Unit Price incl. VAT
8
LINE BREATHER 3/8 ID.
8450073600
Not Available
9
HOSE CLAMP
7080699
$3,14 Unit Price incl. VAT
10
BREATHER FILTER IN LINE
2530029
9999999
Not Available
11
CLAMP HOSE SPRING
7080694
$10,49 Unit Price incl. VAT
12
FORMED BREATHER HOSE WITH CHAFE
5411847
9999999
Not Available
13
CLAMP BAND; NARROW
7080413
$5,76 Unit Price incl. VAT
14
BOOT CARB HYBRID
5411414
9999999
Not Available
15
DUCT CARBURETOR INLET
5432473
9999999
Not Available
16
CARBURETOR INLUET DUCT GASKET
5830128
9999999
Not Available
17
AIR BOX
5432774
9999999
Not Available
18
HOSE BRTHR SLIT 63CM 3/8I.D
5411873
9999999
Not Available
19
RIVET 3/16 X .402
7621432
$2,09 Unit Price incl. VAT
20
CLAMP-HOSE .625 DIA VNL COATED
7080880
$10,49 Unit Price incl. VAT
21
FOIL-AIRBOX 10.75 X 5.60
5813042
9999999
Not Available
22
TRAP PLUG
5435299
9999999
Not Available
23
FUEL LINE
8450059150
Not Available
24
CLAMP HOSE
7080650
$7,34 Unit Price incl. VAT
25
CLIP
5242044
$17,84 Unit Price incl. VAT
26
COLLAR CARBURETOR INLET
5432601
9999999
Not Available
27
FILTER AIR
7080595
7083107
$51,23 Unit Price incl. VAT
28
PRECLEANER FILTER SLEEVE
5811633
$19,20 Unit Price incl. VAT
29
BAND CLAMP; NARROW
7080707
$5,76 Unit Price incl. VAT

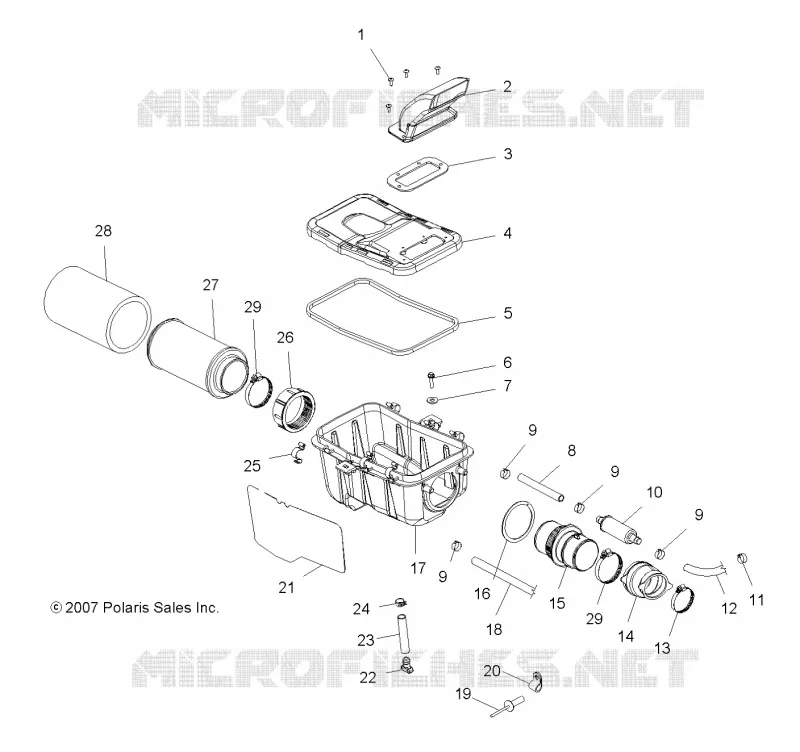

Find the detailed ENGINE, AIR INTAKE SYSTEM POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
