Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
ENGINE, MOUNTING
5
Parts Diagram
Parts Catalog
LOWER CARBURETOR
by
ENGINE, OIL SYSTEM AND OIL FILTER
ENGINE, MOUNTING
1
2
3
4
4
4
4
5
6
7
8
9
10
11
12
12
12
13
14
15
16
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
1
SCREW
7517386
$2,09 Unit Price incl. VAT
2
CABLE GND-ENGINE
4010132
9999999
Not Available
3
BRKT-ENGINE MOUNTTOPPLTD
5242674
9999999
Not Available
4
NUT
7547108
$9,44 Unit Price incl. VAT
5
CABLE GUIDE
3084696
9999999
Not Available
6
CABLE-THROTTLE 1/4 TURN
7081170
7080967
$104,99 Unit Price incl. VAT
7
NUT-3/8-16 FLG LOCK-Y
7547089
9999999
Not Available
8
EXHAUST GASKET ASSEMBLY
3085075
9999999
Not Available
9
MANIFOLD BLK
1261391029
Not Available
10
WASHER SPRING
3080051
9999999
Not Available
11
NUT
3087199
9999999
Not Available
12
WASHER
7555823
$7,34 Unit Price incl. VAT
13
SCREW
7515417
9999999
Not Available
14
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT
15
MOUNT MOTOR
3110067
9999999
Not Available
16
MOUNT FR.ENGINE BLK.
1040688067
Not Available
17
SCREW
7515398
9999999
Not Available
18
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
19
FRICTION CHOKE CABLE; 26 IN
7081177
9999999
Not Available
20
SCREW AND WASHER
3084205
9999999
Not Available
21
ISOLATOR-3/8-24M; 2/8-16M; 60DUR
3022072
9999999
Not Available
22
MOUNT ENGINE REAR BLK
1014993067
Not Available
23
FLAT WASHER
7555815
$7,34 Unit Price incl. VAT
24
BOLT-FLANGE
3087158
9999999
Not Available
25
NARROW BAND CLAMP
7080511
$9,44 Unit Price incl. VAT
26
CLUTCH INTAKE BOOT
5412487
9999999
Not Available
27
CABLE; SOL/STARTER
4010093
$89,24 Unit Price incl. VAT
28
FLANGE NUT
3083856
9999999
Not Available
29
CABLE BATT/ENG. BLK.
4010095
9999999
Not Available
30
SPRING LOCK WASHER
7552901
$2,09 Unit Price incl. VAT
31
BOLT
7512315
$9,44 Unit Price incl. VAT
32
ISOLATOR-3/8-24M/M 60DURO
3022071
3024012
$83,99 Unit Price incl. VAT

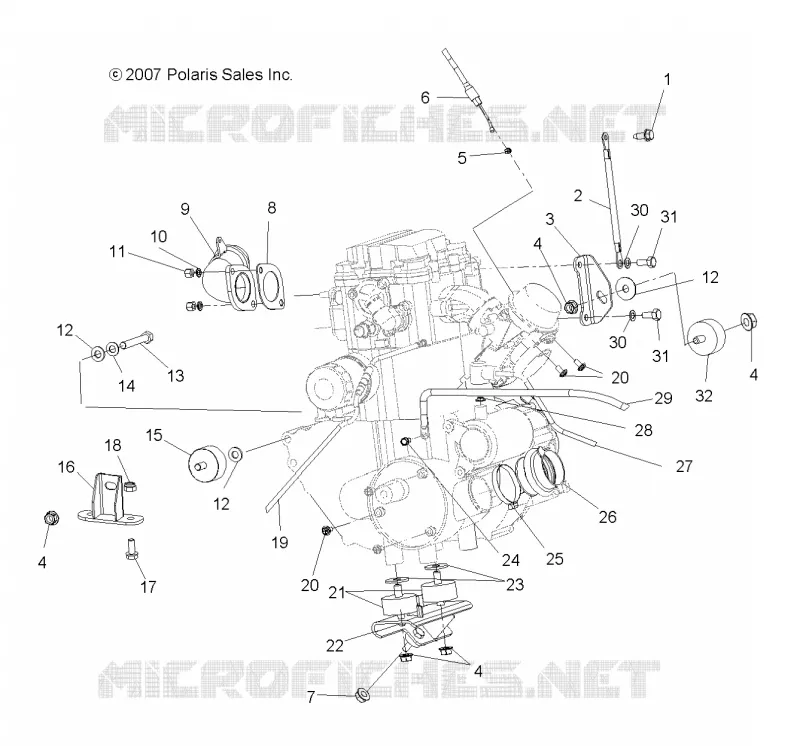

Find the detailed ENGINE, MOUNTING POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
