REAR WHEEL
5
Parts Diagram
Parts Catalog
FRONT WHEEL
by
CLUTCH COVER
REAR WHEEL
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
3
4
5
6
7
7
8
9
10
11
12
1
BOLT
7512673
$5,76 Unit Price incl. VAT
2
REAR WHEEL HUB
5131777
5144192
$152,24 Unit Price incl. VAT
3
NUT
7547037
9999999
Not Available
4
CONE WASHER
7555796
$14,69 Unit Price incl. VAT
5
CASTLE NUT
7543005
9999999
Not Available
6
COTTER PIN
7661404
$9,44 Unit Price incl. VAT
7
HUB DUST COVER
5413427
$52,49 Unit Price incl. VAT
8
WASHER
7555745
9999999
Not Available
9
RIM VALVE
1525017
$12,59 Unit Price incl. VAT
10
PUSHNUT BOLT
7670081
9999999
Not Available
11
WELD-RIM REAR ALUM DGLS
1521496
9999999
Not Available
12
TIRE-22X11-10;TITAN 489;2 STAR
5412323
5419042
$211,56 Unit Price incl. VAT

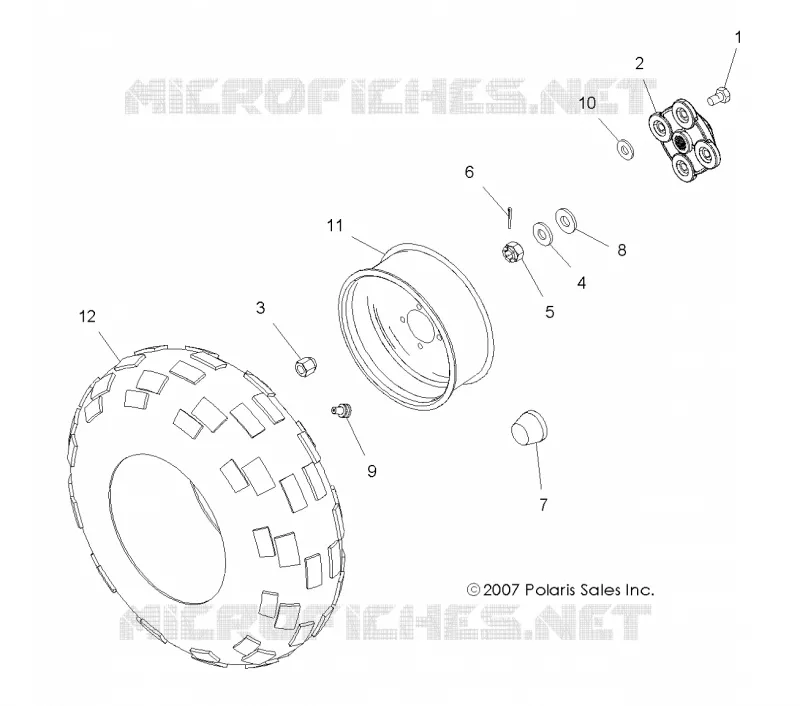

Find the detailed REAR WHEEL POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
