1
Engine displacement
500
2
Year
2009
3
Trim
SCRAMBLER 500 4X4 INTL - A09BG50FA
4
Parts Catalog
ENGINE, OIL SYSTEM AND OIL PUMP
5
Parts Diagram
Parts Catalog
ENGINE, OIL SYSTEM AND OIL FILTER
by
UPPER CARBURETOR
ENGINE, OIL SYSTEM AND OIL PUMP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
19
1
OIL PUMP ASSEMBLY
3090032
9999999
Not Available
2
ROTOR; OUTER; FEED
3084949
9999999
Not Available
3
FOOD ROTOR; INNER
3084948
9999999
Not Available
4
OIL PUMP CASE I
3090000
9999999
Not Available
5
SCREW(10)
3085535
9999999
Not Available
6
PIN DOWEL
3084955
9999999
Not Available
7
PIN DOWEL
3084954
9999999
Not Available
8
WASHER(10)
3084953
9999999
Not Available
9
BOLT&WASHER ASM.
3084962
9999999
Not Available
10
OIL PUMP CASE 3
3087265
9999999
Not Available
11
ROTOR INNER SCAV.
3084950
9999999
Not Available
12
ROTOR; OUTER
3090307
9999999
Not Available
13
OIL STRAINER UNIT
3084956
9999999
Not Available
14
SCREW AND WASHER
3084205
9999999
Not Available
15
PUMP SHAFT
3085858
9999999
Not Available
16
PUMP GEAR
3090033
9999999
Not Available
17
BOLT-FLANGE
3089505
9999999
Not Available
18
SPACER 0.8
3084959
9999999
Not Available
18
SPACER; 1.0
3084960
9999999
Not Available
18
SPACER 1.2
3084961
9999999
Not Available
19
CASE #2OILPUMP
3084946
9999999
Not Available

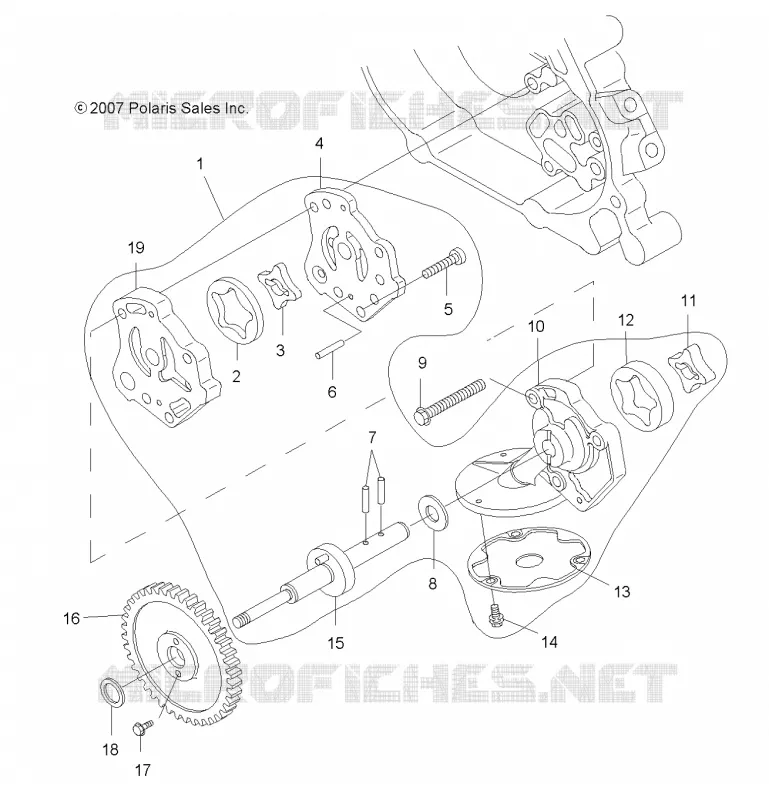

Find the detailed ENGINE, OIL SYSTEM AND OIL PUMP POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
