1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
CARBURETOR 2X4 400L W947540 (4926752675C012)
5
Parts Diagram
Parts Catalog
OIL PUMP 2X4 400L W947540 (4926752675C011)
by
REAR CAB ASSEMBLY 2X4 400L W947540 (4926752675A006)
CARBURETOR 2X4 400L W947540 (4926752675C012)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
1
TOP ASSEMBLY; MIXING CHAMBER
3130184
$68,24 Unit Price incl. VAT
2
THROTTLE SPRING
3130496
9999999
Not Available
3
THROTTLE PLATE
3130027
$19,94 Unit Price incl. VAT
4
E RING
3130003
3130508
$12,59 Unit Price incl. VAT
5
NEEDLE JET
3130462
9999999
Not Available
6
WASHER
3130355
9999999
Not Available
7
VALVE THROTTLE (1.5)
3130494
9999999
Not Available
8
NEEDLE JET ASSEMBLY
3130429
9999999
Not Available
9
RING; MAIN JET
3130393
9999999
Not Available
10
CARBURETOR
3130493
9999999
Not Available
11
WASHER
3130047
$9,44 Unit Price incl. VAT
12
NEEDLE VALVE ASM.(2.5)
3130495
9999999
Not Available
13
PIN; FLOAT
3130235
3130361
$18,89 Unit Price incl. VAT
14
ARM FLOAT
3130018
$52,49 Unit Price incl. VAT
15
FLOAT CHAMBER GASKET
3130020
$31,49 Unit Price incl. VAT
16
CAP
3130237
$8,39 Unit Price incl. VAT
17
FLOAT ASSEMBLY
3130430
$73,49 Unit Price incl. VAT
18
BOWL FLOAT (350)
3130443
9999999
Not Available
19
JET; MAIN
3130123
9999999
Not Available
20
O-RING
3130239
9999999
Not Available
21
GUIDE SCREW
3130432
9999999
Not Available
22
ASM. SCREW & WASHER(10)
3130025
$6,29 Unit Price incl. VAT
23
PILOT JET
3130065
9999999
Not Available
24
SPRING AIR ADJUST
3130012
9999999
Not Available
25
AIR SCREW
3130011
$36,74 Unit Price incl. VAT
26
SCREW THROTTLE STOP
3130009
9999999
Not Available
27
WASHER
3130447
9999999
Not Available
28
SPRING THROT.ADJ.
3130436
9999999
Not Available
29
PLUNGER ASSEMBLY
3130328
$68,24 Unit Price incl. VAT
30
SPRING PLUNGER
3130006
3131764
$18,89 Unit Price incl. VAT
31
GUIDE HOLDER
3130199
$52,49 Unit Price incl. VAT

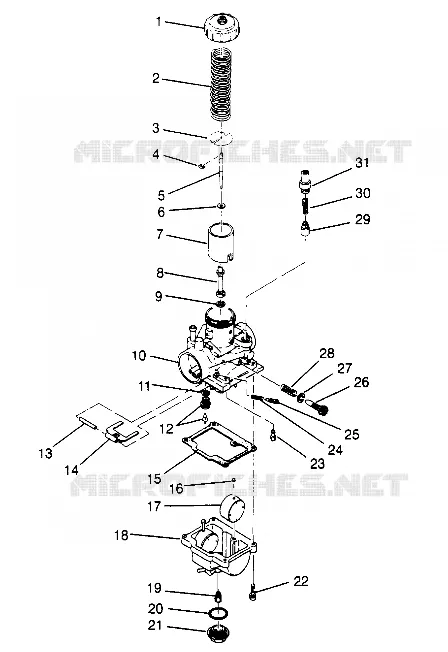

Find the detailed CARBURETOR 2X4 400L W947540 (4926752675C012) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
