REAR BRAKE 2X4 400L W947540 (4926752675B014)
5
Parts Diagram
Parts Catalog
GEARCASE BRAKE MOUNTING 2X4 400L W947540 (4926752675B013)
by
REAR WHEEL DRIVE ASSEMBLY 2X4 400L W947540 (4926752675C001)
REAR BRAKE 2X4 400L W947540 (4926752675B014)
1
2
3
4
5
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
29
30
31
1
2
3
3
3
3
3
3
3
3
3
4
5
7
7
7
7
8
9
10
11
12
13
14
1
PIN DOWEL
7661820
9999999
Not Available
2
CALIPER BRAKE MACH.
5130946
9990005
Not Available
3
BRAKEPAD KIT; REAR
2200464
$56,16 Unit Price incl. VAT
4
PISTON SEAL KIT
2200463
$167,99 Unit Price incl. VAT
5
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
6
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
7
SUBSTITUTED BY 2200463
5020667
$167,99 Unit Price incl. VAT
8
BLEEDER SCREW
7080352
$5,76 Unit Price incl. VAT
9
STOPLIGHT SWITCH
4110164
2890637
$325,49 Unit Price incl. VAT
10
SPRING ANTI-RATTLE
5222232
9999999
Not Available
11
O RING-.364X.504X.07
5410542
5411432
$9,44 Unit Price incl. VAT
12
SPRING BRAKE COMP.
7041219
9999999
Not Available
13
PIN BRAKE CALIPER
5020666
9999999
Not Available
14
BRAKE GASKET
5830009
9999999
Not Available
15
RAMP MOVEABLE BRAKE
5630458
9990000
Not Available
16
RAMP; STAT.BRAKE
5630457
9990000
Not Available
17
SCREW
7512173
9999999
Not Available
18
BRAKE SEAL
3610026
9999999
Not Available
19
ARM BRAKE CALIPER
5240624
9999999
Not Available
20
WASHER; SPRING
7555828
9999999
Not Available
21
NUT
7542129
9999999
Not Available
22
BOLT
7515145
9999999
Not Available
23
SPRING
7042029
$10,49 Unit Price incl. VAT
24
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
25
PEDAL PIVOT BUSHING
5431107
$16,79 Unit Price incl. VAT
26
THRUST WASHER
7558702
$3,14 Unit Price incl. VAT
27
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
28
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
29
FOOTBRAKE BLK.
1910144067
Not Available
30
ROD BRAKE
5224531
9999999
Not Available
31
CAL.ASM REAR BRAKE
1910156
9999999
Not Available

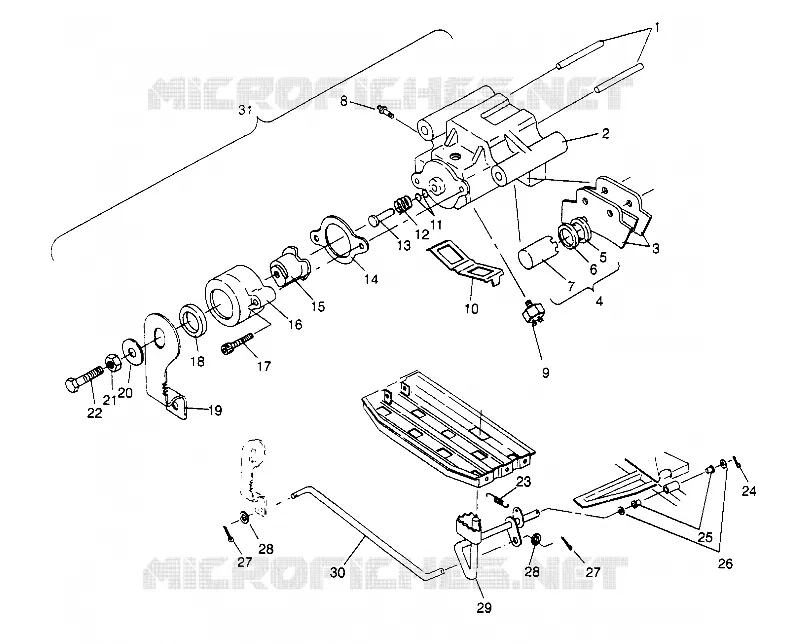

Find the detailed REAR BRAKE 2X4 400L W947540 (4926752675B014) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
