SWING ARM SHOCK 2X4 400L W947540 (4926752675B009)
5
Parts Diagram
Parts Catalog
CONTROLS
by
DRIVE CLUTCH ASSEMBLY 2X4 400L W947540 (4926752675B010)
SWING ARM SHOCK 2X4 400L W947540 (4926752675B009)
1
1
2
3
4
5
6
7
8
9
9
9
9
10
10
11
12
13
14
15
15
16
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
NYLOCK NUT
7542439
$2,09 Unit Price incl. VAT
2
SCREW
7515415
9999999
Not Available
3
RETAINER; SHOCK
5222118
5251753
$19,94 Unit Price incl. VAT
4
COMPRESSION SPRING; REAR; GS BLK
7041204067
Not Available
5
SHOCK REAR
7041218
7041448
$283,49 Unit Price incl. VAT
6
SPRING PROTECTOR SLEEVE
5431032
9999999
Not Available
7
ADAPTER SPRING SEAT
5630351
9999999
Not Available
8
CAM ADJUSTING SPRING
5630334
9999999
Not Available
9
OIL SEAL
3610016
9999999
Not Available
10
WASHER
7555779
9999999
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
ROLLERCHAIN GUIDE
5431003
9999999
Not Available
13
NUT CROWN LOCK
7542601
9999999
Not Available
14
BOLT SHOULDER
7512702
9999999
Not Available
15
BOLT LOCK PLATE
5220958
9999999
Not Available
16
BUSHING MACH.(10)
7555752
9999999
Not Available
17
BEARING SWINGARM
3576512
9999999
Not Available
18
BUSHING SWING ARM(10)
5010255
9999999
Not Available
19
GUARD CHAIN(MODIFIED)
5430952
9999999
Not Available
20
BUSHING
5332828
9999999
Not Available
21
FLAT WASHER
7558402
$1,56 Unit Price incl. VAT
22
FLANGED SCREW
7515304
9999999
Not Available
23
RIVET
7621433
$2,09 Unit Price incl. VAT
24
GUIDE CHAIN
5431310
9999999
Not Available
25
WASHER
7552604
$3,14 Unit Price incl. VAT
26
SCREW
7512252
9999999
Not Available
27
GUARD SWING ARM
1040166067
Not Available
28
NUT FLEXLOCK
7542503
9999999
Not Available
29
WASHER
7555883
$7,34 Unit Price incl. VAT
30
DECAL CHAIN TENSION Substituted by 7074752
7074177
Not Available
31
DECAL HITCH Substituted by 7078261
7072533
Not Available
32
HITCH WELD; BLK.
1040294067
Not Available
33
BOLT
7512576
9999999
Not Available
34
FLANGE NUT
7542321
$2,09 Unit Price incl. VAT
35
DESC NOT_AVAILABLE (Incl. 9. 16 38)
1580052
Not Available
36
FITTING LUBE.W/BALL CK.(10)
7080306
$5,76 Unit Price incl. VAT
37
HOUSING AXLE
5130663
9999999
Not Available
38
BOLT
7515438
$9,44 Unit Price incl. VAT
39
FITTING LUBE
7080438
$19,94 Unit Price incl. VAT
40
SHOULDER BOLT
7512701
9999999
Not Available

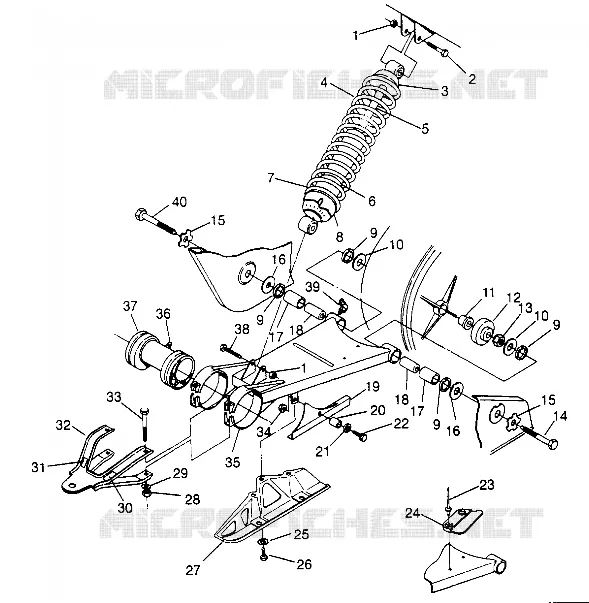

Find the detailed SWING ARM SHOCK 2X4 400L W947540 (4926752675B009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
