1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
FRONT WISHBONES STEERING TIE RODS 2X4 400L W947540 (4926752675B006)
5
Parts Diagram
Parts Catalog
STEERING POST ASSEMBLY 2X4 400L W947540 (4926752675B005)
by
CONTROLS
FRONT WISHBONES STEERING TIE RODS 2X4 400L W947540 (4926752675B006)
1
2
3
4
5
6
7
7
8
8
9
10
10
10
10
11
12
13
14
15
16
17
17
17
17
18
19
20
20
21
21
22
22
23
23
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
20
21
23
1
TIE ROD ASM. Substituted by 1822307
1822070
Not Available
2
ROD END; RH
7060138
9999999
Not Available
3
NUT; RH; 10 MM.
7546901
9999999
Not Available
4
TIE ROD
5020478
9999999
Not Available
5
NUT LH 10 MM.
7546902
9999999
Not Available
6
ROD END
7060147
9999999
Not Available
7
COTTER PIN
7661203
$2,09 Unit Price incl. VAT
8
NUT CASTLE(10)
7546904
9999999
Not Available
9
FLAT WASHER
7555806
$1,56 Unit Price incl. VAT
10
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
11
BALL JOINT
7080364
7061306
$52,49 Unit Price incl. VAT
12
BALL JOINT BRACKET
5211121
$62,99 Unit Price incl. VAT
13
BOOT; RUBBER
5410548
5412658
$9,44 Unit Price incl. VAT
14
SOCKET BOLT
7512284
$2,09 Unit Price incl. VAT
15
CASTLE NUT
7542438
$3,14 Unit Price incl. VAT
16
COTTER PIN
7661401
$1,56 Unit Price incl. VAT
17
KIT A-FRAME RH (Incl. 16 20-23)
2200480
Not Available
17
KIT A-FRAME LH
2200479
9999999
Not Available
18
FITTING LUBRICATION THREADED(1
7080433
$2,09 Unit Price incl. VAT
19
SHAFT A-ARM(2X4)
5020680
9999999
Not Available
20
A-ARM SPACER BUSHING
5020677
$19,94 Unit Price incl. VAT
21
BUSHING A-ARM LONG.
5431596
5436973
$9,44 Unit Price incl. VAT
22
BOLT(10)
7515458
7512492
$2,09 Unit Price incl. VAT
23
SPRING LOCK WASHER
7552603
$1,56 Unit Price incl. VAT

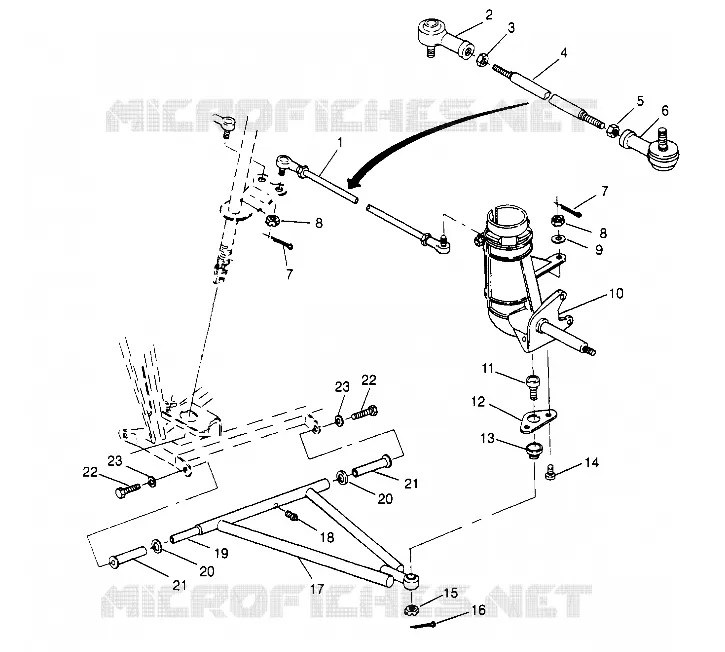

Find the detailed FRONT WISHBONES STEERING TIE RODS 2X4 400L W947540 (4926752675B006) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
