1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
EXHAUST SYSTEM 2X4 400L W947540 (4926752675A010)
5
Parts Diagram
Parts Catalog
FRONT CAB ASSEMBLY 2X4 400L W947540 (4926752675A005)
by
FUEL TANK ASSEMBLY 2X4 400L W947540 (4926752675A011)
EXHAUST SYSTEM 2X4 400L W947540 (4926752675A010)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
1
NYLOK NUT
7542324
$1,56 Unit Price incl. VAT
2
WASHER
7555716
$3,14 Unit Price incl. VAT
3
BUSHING
5010192
$12,59 Unit Price incl. VAT
4
DAMPENER
5410241
5412508
$9,44 Unit Price incl. VAT
5
BRKT RH SUPPORT RACK
5220901067
Not Available
6
SUPPORT FENDER; REAR; MEDIUM GLOSS BLACK
5220902067
Not Available
7
MOUNT MOTOR
3110030
9999999
Not Available
8
NUT JAM
7542432
$7,34 Unit Price incl. VAT
9
WASHER RUBBER
5410436
9999999
Not Available
10
BOLT
7515316
$4,19 Unit Price incl. VAT
11
BOLT
7512666
$4,19 Unit Price incl. VAT
12
PLUG CLEANOUT
7052083
9999999
Not Available
13
SCREW(10)
7515140
$6,29 Unit Price incl. VAT
14
BOLT BLACK
7512282
9999999
Not Available
15
NUT; RETAINER(10)
7542141
9999999
Not Available
16
HEATSHIELD ASM. (Incl. 16)
1260620
Not Available
17
WASHER
7555776
7558301
$2,09 Unit Price incl. VAT
18
SPEED NUT
7670060
9999999
Not Available
19
RIVET
7621462
$2,09 Unit Price incl. VAT
20
SCREW
7512252
9999999
Not Available
21
BRKTHEAT SHIELDBLK.
5240594067
Not Available
22
SPRING; EXHAUST
7042031
7041687
$12,59 Unit Price incl. VAT
23
HEADPIPE WELD.
1260549029
Not Available
24
SPRING
7042029
$10,49 Unit Price incl. VAT
25
EXHAUST WELDBLK(350)
1260588029
Not Available
26
MANIFOLD BLK.
1260543029
Not Available
27
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
28
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available

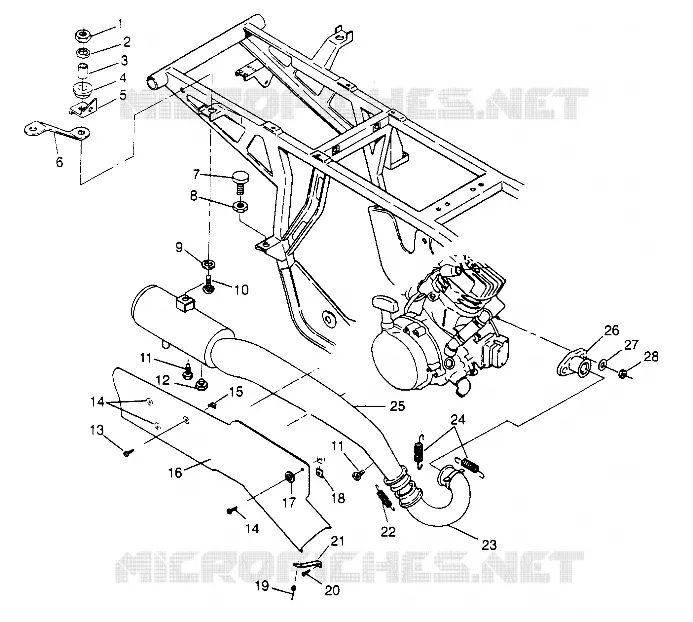

Find the detailed EXHAUST SYSTEM 2X4 400L W947540 (4926752675A010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
