Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
RECOIL STARTER 2X4 400L W947540 (4926752675C013)
5
Parts Diagram
Parts Catalog
CRANKCASE AND CYLINDER 2X4 400L W947540 (4926752675C007)
by
STARTING MOTOR 2X4 400L W947540 (4926752675C014)
RECOIL STARTER 2X4 400L W947540 (4926752675C013)
1
2
3
4
5
5
5
5
5
5
5
5
5
6
7
8
9
10
11
12
13
14
14
14
14
15
16
17
18
19
1
SPIRAL SPRING
3083185
9999999
Not Available
2
BUSHING
3084750
9999999
Not Available
3
PLUG
3083453
9999999
Not Available
4
GASKET
3082956
9999999
Not Available
5
CASE STARTER Substituted by 3084821
3084742
Not Available
5
STARTER ASM RECOIL Substituted by 3085082 (Incl. 1 2 8-19)
3084780
Not Available
5
STARTER RECOIL Substituted by 3084780 (Incl. 1 2 9-19)
3084781
Not Available
6
BOLT&WASHER
3084782
9999999
Not Available
7
BOLT; FLANGE
3084177
9999999
Not Available
8
STARTER BUSHING
3083669
9999999
Not Available
9
BOLT
3084751
9999999
Not Available
10
WASHER SPRING
3084752
Not Available
11
FRICTION PLATE
3084744
9999999
Not Available
12
FRICTION SPRING
3083379
9999999
Not Available
13
REEL; STARTER
3084743
9999999
Not Available
14
ROPE ASM;W/HANDLE
3084745
9999999
Not Available
14
ROPE STARTER
3084746
9999999
Not Available
15
KNOB; STARTER
3084747
9999999
Not Available
16
TAPE; KNOB
3084748
9999999
Not Available
17
CAP; KNOB
3084749
9999999
Not Available
18
RATCHET
3083378
9999999
Not Available
19
RETURN SPRING
3083463
9999999
Not Available

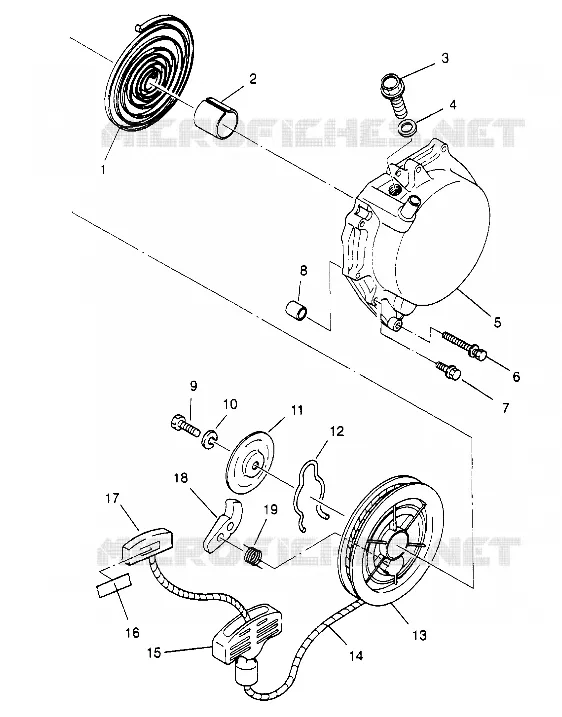

Find the detailed RECOIL STARTER 2X4 400L W947540 (4926752675C013) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
