1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
COOLING SYSTEM 2X4 400L W947540 (4926752675A009)
5
Parts Diagram
Parts Catalog
ENGINE MOUNTING 2X4 400L W947540 (4926752675A008)
by
AIR BOX 2X4 400L W947540 (4926752675A014)
COOLING SYSTEM 2X4 400L W947540 (4926752675A009)
1
2
11
11
5
6
7
8
11
10
11
12
13
13
13
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
26
27
28
29
30
31
1
SCREW
7511874
9999999
Not Available
2
WASHER FLAT
7558201
$9,44 Unit Price incl. VAT
3
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
4
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
5
SPACER; FAN BRKT.
5333073
9999999
Not Available
6
BRKT COOLING FAN
5222559067
Not Available
7
SCREW
7512252
9999999
Not Available
8
NUT
7541915
9999999
Not Available
9
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
10
BLADE; FAN
5431262
9999999
Not Available
11
SHOCK FTA [SEE PAGE- SUSPENSION SHOCK FRONT TRACK]
*******
Not Available
12
RADIATOR MOUNT BUSHING; LOWER
5410584
$10,49 Unit Price incl. VAT
13
SHIELD RH RADIATOR
5431189
Not Available
13
SHIELD LH RADIATOR
5431188
Not Available
14
O-RING
5410607
9999999
Not Available
15
CLIP PLASTIC DART(10)
7670078
$6,29 Unit Price incl. VAT
16
NYLOK NUT
7542122
$2,09 Unit Price incl. VAT
17
GUARD LOW.RADIATOR
5222547067
Not Available
18
COVER RADIATOR W/MESH
5431610
Not Available
19
CARRIAGE BOLT
7512193
$4,19 Unit Price incl. VAT
20
BOLT
7512113
$7,34 Unit Price incl. VAT
21
WASHER
7552605
9999999
Not Available
22
RADIATOR
1240006
9999999
Not Available
23
CAP; RADIATOR
2511189
9999999
Not Available
24
DECAL(CPSC) RAD.CAP
7073068
Not Available
25
SWITCHRADIATOR THERMO.
4110099
9999999
Not Available
26
CLAMP WORM DRIVE
7080547
9999999
Not Available
27
MOUNT SPACER
5020572
9999999
Not Available
28
MOUNT; RUBBER
3110032
9999999
Not Available
29
FLAT WASHER
7558301
$2,09 Unit Price incl. VAT
30
HOSE LOWER ENG.
5410606
Not Available
31
ENGINE HOSE; UPPER
5410570
9999999
Not Available

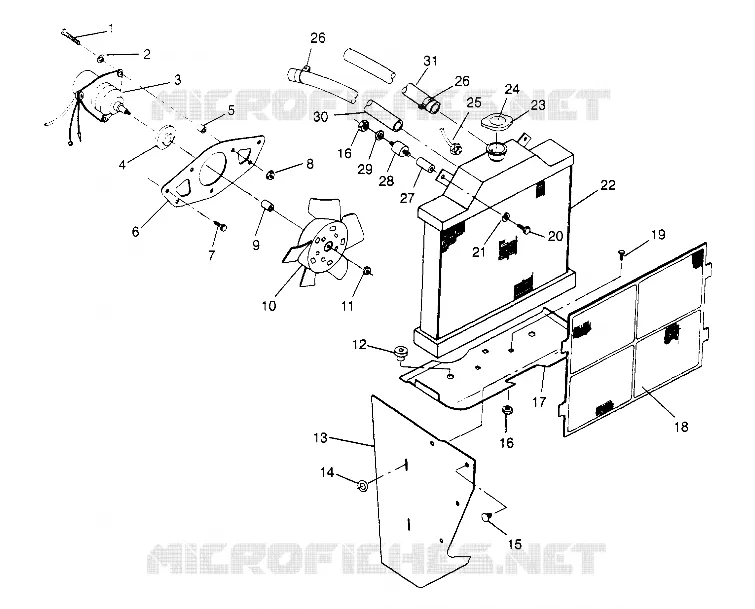

Find the detailed COOLING SYSTEM 2X4 400L W947540 (4926752675A009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
