Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
PISTON CRANKSHAFT 2X4 400L W947540 (4926752675C009)
5
Parts Diagram
Parts Catalog
SHIFT LINKAGE ASSEMBLY 2X4 400L W947540 (4926752675C002)
by
WATER PUMP 2X4 400L W947540 (4926752675C010)
PISTON CRANKSHAFT 2X4 400L W947540 (4926752675C009)
-
1
1
2
2
3
4
4
4
4
4
4
4
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
15
15
16
17
17
18
19
20
21
22
22
22
22
23
-
2
3
4
5
5
6
7
8
9
10
11
11
11
12
13
14
15
16
16
17
17
18
19
20
21
22
23
-
PISTON RING .50MM O/S
3084739
9999999
Not Available
1
STANDARD PISTON RING
3084737
9999999
Not Available
1
PISTON RING .25 MM
3084738
9999999
Not Available
2
PISTON PIN CLIP
3084167
2207579
$356,99 Unit Price incl. VAT
3
PISTON PIN
3083838
2207579
$356,99 Unit Price incl. VAT
4
SET PISTON .010 /.25MM O/S
3084735
9999999
Not Available
4
PISTON .020/.50MM O/S
3084736
9999999
Not Available
4
PISTON STANDARD
3084734
9999999
Not Available
5
BALANCER
3084172
9999999
Not Available
6
PLATE
3084173
9999999
Not Available
7
BOLT FLANGE
3084174
9999999
Not Available
8
GEAR DRIVE
3084156
9999999
Not Available
9
WASHER GUIDE
3084159
9999999
Not Available
10
O RING
3084160
9999999
Not Available
11
COLLAR
3084158
9999999
Not Available
12
NUT SLIT
3084157
9999999
Not Available
13
WASHER
3083904
9999999
Not Available
14
LOCK NUT
3083905
9999999
Not Available
15
CRANKSHAFT ASSEMBLY
3084776
9999999
Not Available
15
CRANKSHAFT #1MAG SIDE
3084149
9999999
Not Available
16
KEY WOODRUFF
3081543
$26,24 Unit Price incl. VAT
17
CRANK PIN SPACER
3084155
9999999
Not Available
18
BEARING LARGE END
3084154
9999999
Not Available
19
SMALL END BERAING
3084168
9999999
Not Available
20
CONNECTING ROD
3084153
9999999
Not Available
21
CRANKSHAFT #2PTO SIDE
3084777
9999999
Not Available
22
SPACER #1
3084778
9999999
Not Available
22
SPACER #2
3084779
9999999
Not Available
23
PIN CRANK
3084152
9999999
Not Available

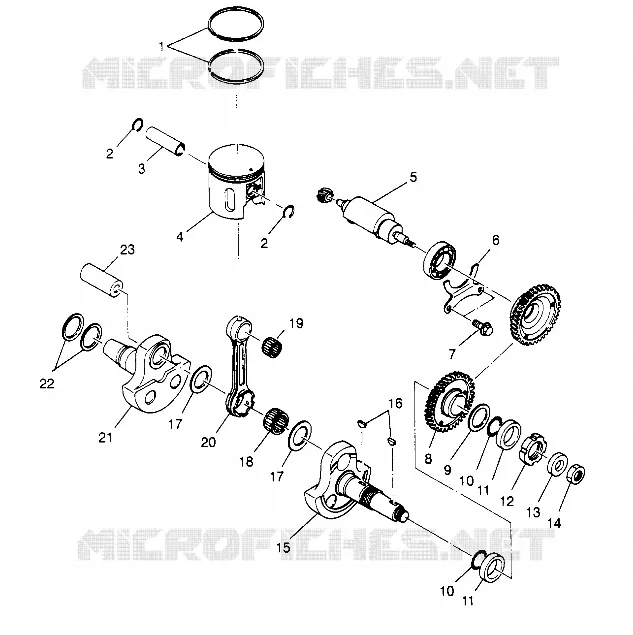

Find the detailed PISTON CRANKSHAFT 2X4 400L W947540 (4926752675C009) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.
