1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
MAGNETO ASSEMBLY 2X4 400L W947540 (4926752675D001)
5
Parts Diagram
Parts Catalog
STARTING MOTOR 2X4 400L W947540 (4926752675C014)
by
FAN MOTOR 2X4 400L W947540 (4926752675D002)
MAGNETO ASSEMBLY 2X4 400L W947540 (4926752675D001)
1
1
1
2
3
3
3
3
4
5
6
7
8
9
10
11
12
13
14
1
ASM. SCREW&WASHER(10)
3081260
9999999
Not Available
2
CLAMP
3081146
9999999
Not Available
3
PLATE ASM.
3084761
9999999
Not Available
3
PLATE COIL
3084762
9999999
Not Available
4
SCREW FLANGE
3084766
9999999
Not Available
5
SCREW&WASHER ASM(10)
3081342
9999999
Not Available
6
CLAMP
3084765
9999999
Not Available
7
STATOR
3084763
9999999
Not Available
8
SCREW&WASHER ASM.
3084764
9999999
Not Available
9
BAND
3084099
9999999
Not Available
10
FLYWHEEL W/RING GEAR
3084760
9999999
Not Available
11
RESISTOR PLUG CAP
4020129
4083595
$52,49 Unit Price incl. VAT
12
COIL IGNITION
3083923
9999999
Not Available
13
SWITCH-MAGNETIC
3083211
4011335
$115,49 Unit Price incl. VAT
14
CDI SYSTEM Substituted by 3085087
3084767
Not Available

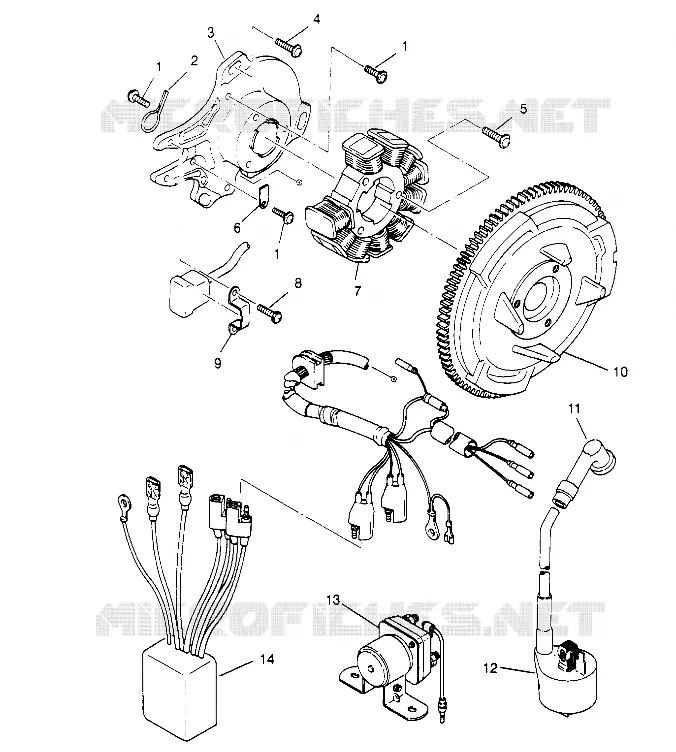

Find the detailed MAGNETO ASSEMBLY 2X4 400L W947540 (4926752675D001) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
