1
Engine displacement
400
2
Year
1994
3
Trim
400L 2X4 - W947540
4
Parts Catalog
DRIVE CLUTCH ASSEMBLY 2X4 400L W947540 (4926752675B010)
5
Parts Diagram
Parts Catalog
SWING ARM SHOCK 2X4 400L W947540 (4926752675B009)
by
DRIVEN CLUTCH ASSEMBLY 2X4 400L W947540 (4926752675B011)
DRIVE CLUTCH ASSEMBLY 2X4 400L W947540 (4926752675B010)
1
2
3
4
5
6
6
7
8
9
10
11
12
12
12
12
12
12
12
12
12
13
14
15
16
1
CLUTCH DRIVE(ATV-07)
1321633
1321976
$1 081,49 Unit Price incl. VAT
2
BOLT
7512176
7512163
$7,34 Unit Price incl. VAT
3
SPRING LOCK WASHER
7552801
$3,14 Unit Price incl. VAT
4
BEARING COVER
3576510
$16,79 Unit Price incl. VAT
5
CLUTCH SPRING
7041157
$89,24 Unit Price incl. VAT
6
BUTTON GUIDE
5431688
9999999
Not Available
7
WASHER RUBBER
5410609
$3,14 Unit Price incl. VAT
8
PIN SPIDER
5020436
9999999
Not Available
9
WASHER(10)
5430945
5438247
$3,14 Unit Price incl. VAT
10
ROLLER/BUSHING ASSEMBLY
1321457
$73,49 Unit Price incl. VAT
11
O-RING
5410610
9999999
Not Available
12
SPACER .020
5210752
$3,14 Unit Price incl. VAT
12
SPACER .050
5210754
$6,29 Unit Price incl. VAT
12
SPACER .032
5210753
$4,19 Unit Price incl. VAT
13
BUSHING MOVEABLE 1/2 INCH
3576504
$41,99 Unit Price incl. VAT
14
FLEXLOC NUT(10)
7541906
$6,29 Unit Price incl. VAT
15
SHIFT WEIGHT
5630514
9999999
Not Available
16
SHOULDER BOLT
7512266
$5,76 Unit Price incl. VAT

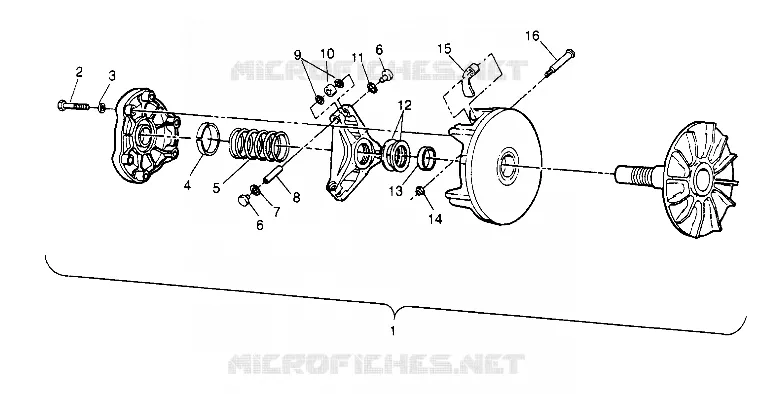

Find the detailed DRIVE CLUTCH ASSEMBLY 2X4 400L W947540 (4926752675B010) POLARIS diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original POLARIS part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
